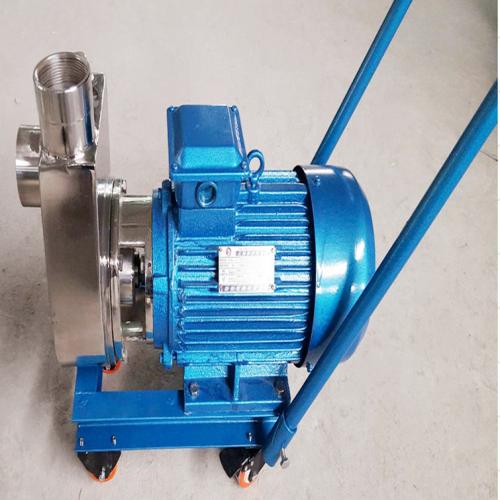

50SFBX-20 SFBX stainless steel Self priming centrifugal pump Description

horizontal stainless steel pumps are primarily divided into two categories based on connection methods and functional characteristics

1. Connection method:

Direct-drive /coupled type: The motor is directly connected to the pump body, suitable for conveying liquids with temperatures ≤90°C

With shaft coupling type: Connected via a coupling, suitable for handling high-temperature liquids ≤105°C

2. Functional Features:

SFB Standard Delivery Type: No self-priming function, requires a foot valve

Self-priming type ( SFBX series): Operates the pump without a foot valve, saving effort

II. Core Features

1. Corrosion-resistant:

Made of 304 and 316L stainless steel, resistant to weak acids and alkalis, suitable for both food factories and chemical plants

2. Compact footprint:

Horizontal design, with the motor and pump body lying flat to save space; the SFBX series features self-priming capability, simplifying the piping system

3. Seal properly:

West Germany's cantilever mechanical seal, nearly leak-free

4. Easy to repair:

The impeller and seals can be disassembled separately; the coupling design allows for maintenance without the need to dismantle the pipelines

5. Power-saving:

The hydraulic model has been optimized for high efficiency, making it more cost-effective for long-term use

3. Application Scenarios

Suitable for industries with requirements for hygiene and corrosion resistance:

1. Food and Beverage:

Transporting liquids such as juice and milk, compliant with food standards

2. Pharmaceuticals:

Transporting drug solutions and solvents, supporting cleaning and disinfection

3. Wastewater Treatment:

Handling electroplating and dyeing liquids, but the liquids must not contain fine soft particles

4. Chemical Industry:

Transporting dilute sulfuric acid, hydrochloric acid, and other liquids, with 316L material offering superior corrosion resistance

5. Self-absorption demand:

The SFBX series features a suction height of 5-6.5 meters and is suitable for various scenarios such as environmental protection and equipment cooling

4. Key Technical Parameters

Medium:

Clear water, weak acid and weak alkali solutions, etc., must not contain fine soft particles in the liquid

2. Temperature:

Direct drive temperature ≤90°C, coupling drive temperature ≤105°C

3. Material:

304 material is suitable for general scenarios, while 316L is recommended for highly corrosive environments

4. Performance:

Flow rate range: 3.2-550 m³/h (varies by model), head suitable for medium and low-pressure applications

5. Installation:

The motor and pump shaft deviation shall be ≤0.1mm, the suction pipe height ≤5 meters, and a filter screen and overload protection device must be installed
