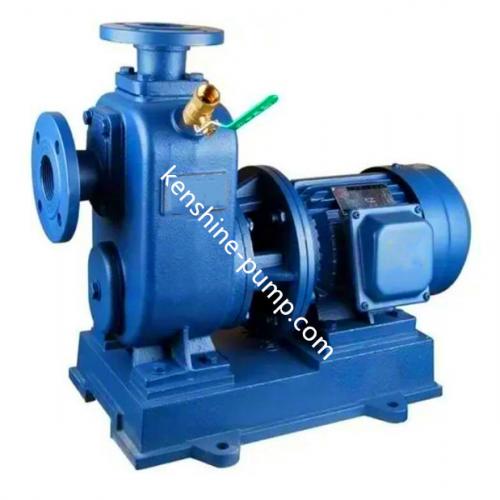

ZXL horizontal self priming metal pump

ZXL horizontal self priming metal pump
  • Model Number: 40ZXL6.3-30
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 600sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

40ZXL6.3-30 ZXL horizontal self priming metal pump Description

ZXL horizontal self-priming pump adopts the pump body structure of axial liquid return.  The pump body consists of suction chamber, liquid storage chamber, vortex chamber, liquid return hole, gas-liquid separation chamber and so on.  When the pump and motor is driven directly, attention should be paid to the coaxiality of the pump shaft and motor shaft.  The pump coupling must be well fixed with screws and locked with nuts.  In order to let the pump body maintain a certain amount of storage fluid, in order to achieve better self-priming and prevent dry friction of mechanical seal, it must make the pump inlet higher than the center line of the pump shaft.  Suction inlet installation height should not exceed 5 meters.  The valves and flanges in the suction pipeline should be strictly prevented from leaking air or liquid.  A filter should be set up on the suction line to prevent the suction of solids and other sundries in the pump body.

The discharge line does not require a check valve, and the suction line does not require a bottom valve, thus simplifying the piping system. Suction height: 4 to 5meters.

ZXL horizontal self-priming pump is suitable for industrial and urban water supply and drainage, environmental protection, construction, fire protection, chemical, pharmaceutical, dye, printing and dyeing, brewing, electric power, electroplating, paper making, industrial and mining washing, equipment cooling, etc.

flow rate 3-500m3/h
head 3-125m
pump material cast iron or stainless steel
