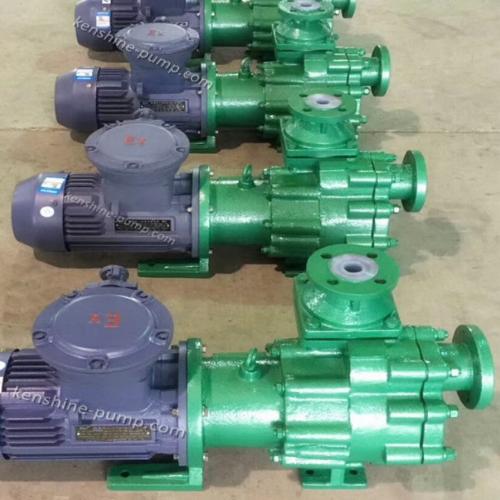

ZMD fluoroplastic liner self priming magnetic drive pump

ZMD fluoroplastic liner self priming magnetic drive pump
  • Model Number: 65ZMD-32F
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1SET
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

65ZMD-32F ZMD fluoroplastic liner self priming magnetic drive pump Description

ZMD fluoroplastic liner self priming magnetic drive pump:

ZMD series self-priming magnetic pump integrates all the excellent characteristics of the magnetic pump and the advantage of self-priming pump. Suction height can reach 2-4 meters, Magnetic pump eliminates the shaft seal and uses magnetic coupling drive to completely eliminate the leakage.


ZMD self priming magnetic drive pump is made of metal with fluorine plastic liner. ZMD Self priming magnetic drive pump is widely used to convey inflammable, explosive, volatile, strong corrosion, strong permeability and high risk etc chemical medium.


According to the characteristics of the conveyed medium, such as the specific gravity of the medium, corrosion etc, the shaft with different material can be chose.


ZMD series magnetic drive pump adopts new material to make the isolation sleeve with high strength mechanical properties, which completely eliminates the phenomenon of magnetic eddy current of the general magnetic pump.

ZMD series magnetic drive pump adopts unique back pull structure. It is convenient to easily disassemble internal maintenance parts and no need to remove the pipeline. It greatly facilitate the daily maintenance work.


ZMD fluorine plastic self-priming magnetic pump is widely used in petrochemical industry, non-ferrous metal smelting, acid alkali pesticides, papermaking, pickling technology, rare earth separation, electroplating, electronics, into a foil, and other industries.


ZMD fluorine plastic self priming magnetic drive pump is the magnetic drive pump with new structure, high efficiency and energy saving, safe and practical features.


Working temperature: - 20 ° C to 150 ° C


Flow rate 2-65m3/h
Head 10-50m
pump material Fluoroplastic liner
