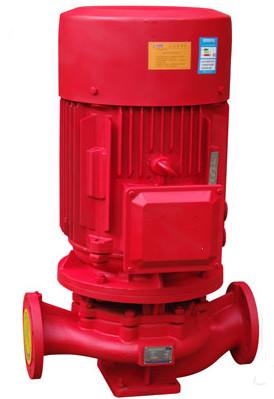

XBD-ISG Electric fire fighting centrifugal water pump
- Model Number: XBD5/5-ISG65-200
- Brand Name: kenshine-pump.com
- Place of Origin: Shanghai, China
- Minimum Order Quantity: 1Set
- Supply Capacity: 1000Sets per month/month
- Payment: T/T IN ADVANCE
- MemberShip: Gold Member
- Inquiry Now
XBD5/5-ISG65-200 XBD-ISG Electric fire fighting centrifugal water pump Description
XBD-ISG single-stage single-suction fire pump is a vertical single-suction fire pump, which is used to transport clean water without solid particles and other liquid with physical and chemical properties similar to water.
XBD-ISG fire pump is mainly used for pressurized water supply in fire fighting system and also for water supply and drainage in factories and mines.
flow range is 5 ~ 80L/S, the pressure range is 0.2 ~ 2.25mpa, the supporting power range is 1.5 ~ 200KW, the diameter range is 50 ~ 200mm.
Electric fire pump :
XBD-ISG fire pump is mainly used for pressurized water delivery in fire system pipelines. It can also be used in industrial and urban water supply and drainage, high-rise building water supply, long-distance water supply, heating, bathroom, boiler cold and warm water pressurized air conditioning refrigeration system water supply and equipment supporting occasions.
Electric fire pump model meaning
XBD 3.2/5-ISG65 -160A
XBD - fire pump
3.2 -- design pressure (1/10mpa)
5 -- design flow (L/S)
ISG-Vertical single stage centrifugal pump
65 -- inlet and outlet diameter (mm)
160 -- nominal diameter of impeller (mm)
A -- the impeller is cut for the first time
