WBZ Self-priming stainless steel hygienic pump

WBZ Self-priming stainless steel hygienic pump
  • Model Number: 50WBZ13.5-22
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

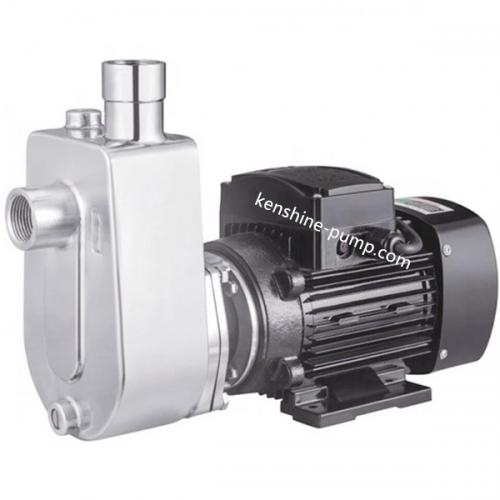

50WBZ13.5-22 WBZ Self-priming stainless steel hygienic pump Description

Self-priming stainless-steel pump
WBZ Self-priming stainless steel small centrifugal pump is made of stainless-steel casting (SS304 or SS316) with good corrosion resistance. The impeller is semi-open and swirling structure. The flow parts and connecting frame are all made of stainless-steel material. WBZ Self priming stainless- steel pump has self-priming performance. Foot valve need not be installed onto the inlet pipeline and suction height of the pump is up 4meters.

Pumped liquids
WBZ Self priming stainless-steel pump can transport corrosive or hygienic liquids, containing small soft particles or fiber. Liquids temperature is not higher than 103℃.

Application:
WBZ Small self-priming stainless-steel pump is widely used in food, beverages, pharmaceuticals, sewage treatment, chemical, electroplating, dyeing, fine chemicals, and other liquids.

Features:
Stainless-steel welded shaft structure effectively guarantees the life of the                  mechanical seal and impeller balance.
With PTFE seal, according to different customer needs, the pump can be equipped with explosion-proof motor.
Connection between pump and motor can be for closed coupling or shaft coupling
Motor: 220V-240V/50HZ/60HZ,1Phase , 380V-440V/50HZ/60HZ, 3Phase
Suction height: 4m

Working conditions:
1.Pumped medium: the solid content of insoluble volume of not more than 0.1% of the unit volume, particle size is not greater than 0.2mm. (Mediums such as with a small particle to be used to wear mechanical seal, please specify when ordering.)
2. Ambient temperature does not exceed 40 ºC, relative humidity of not more than 95%, altitude of not more than 1000m.
3.The: transmission medium kinematic viscosity of 7×10-7-23×10-6m2/s.

Model meaning:
50WBZ13.5-22
50: pump inlet (50mm)
WB: Stainless steel small centrifugal pump
Z: Self-priming pump
13.5: flow rate (13.5m3/h)
22: delivery head (22m)

flow rate 1-20m3/h
head 3-30m
pump material SS304,SS316,SS316L
