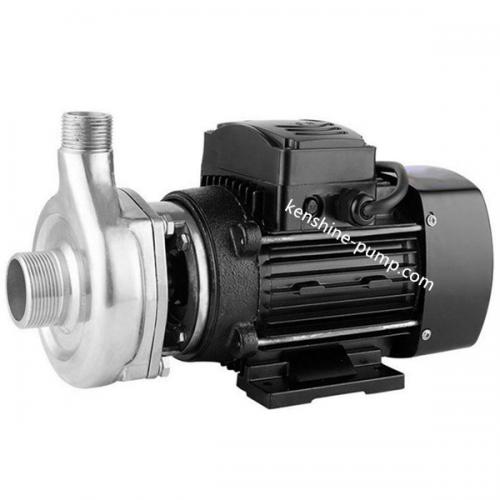

WBS Stainless steel semi-open impeller centrifugal pump

WBS Stainless steel semi-open impeller centrifugal pump
  • Model Number: 50WBS15-18
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

50WBS15-18 WBS Stainless steel semi-open impeller centrifugal pump Description

Material and pumped liquids:

WBS stainless steel centrifugal pump is made of stainless-steel casting (SS304, SS316) and developed by our company. Impeller of pump adopts semi-open. All the flow parts and connecting frame are all made of stainless-steel casting.

WBS Stainless steel centrifugal pump is used to transport the corrosive or hygienic liquids with fine soft particles or fiber. Liquids temperature is no higher than 100 degree Celsius.



Advantages

Good appearance, corrosion resistance, reliable performance, convenient operation and maintenance, low energy consumption, good sealing etc.



Application:

WBS stainless steel centrifugal pump is widely used in food, beverage, medicine, sewage treatment, chemical, electroplating, bleaching, fine chemical and other industries.





Operation conditions:

Connection between pump and motor can be for closed coupling or shaft coupling

Motor: 220V-240V/50HZ/60HZ,1Phase , 380V-440V/50HZ/60HZ, 3Phase

Applicable medium:

the volume content of solid insoluble substance shall not exceed 0.1% of the unit volume, and the particle size shall not be greater than 0.2mm(wear resistant mechanical seal shall be used if the medium contains fine particles, please explain when ordering.)

Ambient temperature shall not exceed 40℃, relative humidity shall not exceed 95%, and altitude shall not exceed 1000m.

Density of the conveying medium is 7x10^-7-23 x10^ -6㎡/s



Model meaning:

50WBS15-18

50: pump inlet (50mm)

WB: small stainless-steel pump

S: three phase motor

15: pump flow rate (15m3/h)

18: delivery head (18m)


flow rate 4-25m3/h
head 10-32m
pump material SS304,SS316,SS316L
