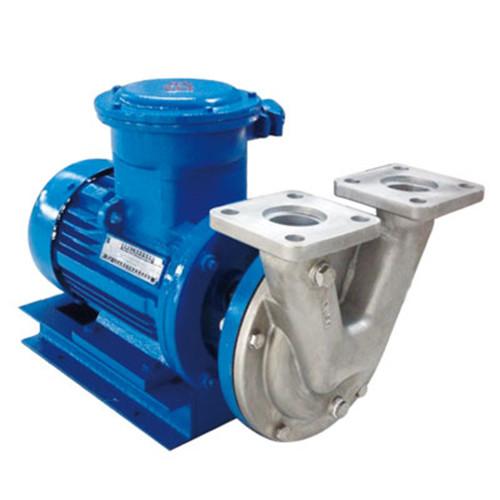

VSP Series enhanced vacuum self priming pump

VSP Series enhanced vacuum self priming pump
  • Model Number: VSP-50A
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1SET
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

VSP-50A VSP Series enhanced vacuum self priming pump Description

VSP Series enhanced vacuum self priming pump

VSP enhanced vacuum self priming pump is composed of pump body, pump cover, rotor assembly and power component. The rotor assembly is installed in the pump chambers between pump body and pump cover. The power component drives the rotor assembly to rotate and the rotor assembly rotates in the pump chamber to produce the changed of sealed chamber volume and rapidly generate the vacuum degree of in order to suck the fluids.

The pump can be made of stainless steel (SS304,SS316) or hastalloy or engineering plastic or fluorine plastic etc according to the different fluids.

VSP Series enhanced vacuum self priming pump is suitable to convey the volatile solvent, oils and glue etc with high viscosity, especially the volatile solvent and oils and glue with high viscosity in the barrels. The pump has the advantages such as high self priming performance and short suction time ,strong cavitations resistance and simple structure, easy maintenance and long service life etc.

Features:

1.Strong self priming ability, unique innovative structure, suction height up 8.2m

2.Short suction time:3meters/2senconds, 5meters/8seconds, 8meters/15seconds

3.Wide pumping fluids ranges: pumping volatile solvent, oil and glue fluids etc with high viscosity

4.Strong cavitations resistance: the pump can pump the liquids in high vacuum container.

Application:

1.       Extraction and transportation of various low specific gravity and volatile solvent

2.       Extraction and delivery of barreled liquids (replacing barreled pump and vacuum pump unit)

3.       Clean up the residue in the tanks.

4.       Draw and clean sludge at the bottom of tank and barrel etc.

5.       Agriculture, medicine, intermediates and other chemical industries.

6.       Extraction and transportation of high-viscosity liquids for daily chemicals, oils and other industries.

7.       Beer, yellow rice wine and other brewery-related industries.

8.       Dairy, dairy and other food related industries.


Flow rate 2-70m3/h
Head 2-38m
pump material stainless steel, PP,PTFE
