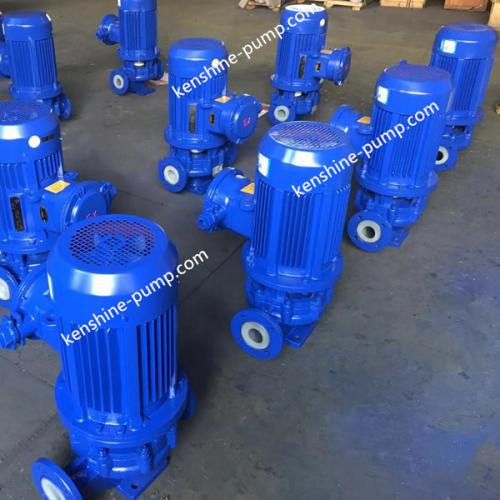

Vertical fluoroplastic centrifugal pump

Vertical fluoroplastic centrifugal pump
  • Model Number: GBF50-200
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T IN ADVANCE
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

GBF50-200 Vertical fluoroplastic centrifugal pump Description

Vertical fluoroplastic centrifugal pump

Fluoroplastics are the most excellent corrosion resistant materials in the world today. GBF type fluorine lined pipeline vertical pump is made of this material and is combined with the excellent hydraulic model and the performance parameters of ISG type vertical centrifugal pump. The product has strong corrosion resistance, and it can replace 316L stainless steel, titanium alloy and other precious metals, and has high efficiency, low noise, reliable performance and other advantages

GBF type vertical fluorine lined pipeline pump is vertical structure, the inlet and outlet diameter is the same, and they are located in the same center line, such as with a protective cover can be placed in the outdoor for use.

GBF type fluorine lined pipeline pump impeller is directly installed in the motor bearing and configuration is reasonable. It can effectively balance the radial and axial load generated by the pump operation, so as to ensure the pump operation balance, vibration noise is very low.

GBF type fluorine lined pipeline pump shaft seal adopts the combination of normal type and particle resistant mechanical seal and mechanical seal has wear-resisting and anti-corrosion, which can effectively increase the service life of the mechanical seal.

GBF type fluorine lined pipeline centrifugal vertical pump can be operated in series or parallel according to the requirements of flow and head.

Scope of Use:

GBF type Vertical centrifugal fluorine lined pipeline pump is suitable for long-term transportation of acid, alkali, oxidant and other corrosive liquids with any concentration under the temperature of -85℃to 200℃. It is Widely used in petroleum, chemical industry, metallurgy, electric power, papermaking, flue gas desulfurization, dust removal, food pharmaceutical and synthetic fiber departments.



GBF type Vertical Fluorine lined pipeline pump Performance Parameters:

flow rate (Q) 2.5-400m3/h

head (H) 15-80m

working pressure (P) 2.5MPa


flow rate 2-400m3/h
head 3-50m
pump material FEP,F46/PFA/PTFE
