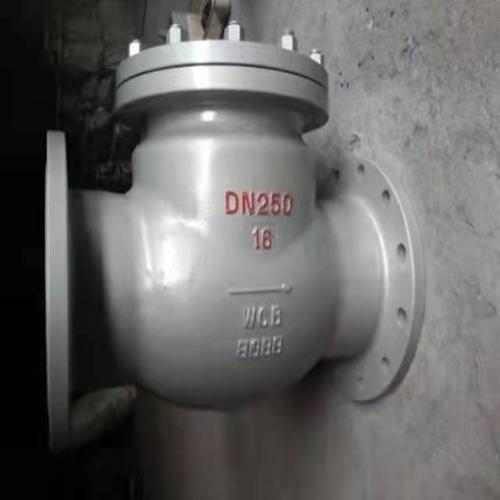

Tilting disc swing check valve (TH-CKV-TDS)
- Model Number: TH-CKV-TDS
- Brand Name: THV
- Place of Origin: Tianjin, China
- Minimum Order Quantity: 10sets
- Supply Capacity: 1000sets/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
TH-CKV-TDS Tilting disc swing check valve (TH-CKV-TDS) DescriptionTYPE:Wafer, double flangeSIZE & CONNECTIONS:DN50 to D600MEDIUM:Air, Inert Gas, Oil, Seawater, Waste water, WaterMATERIALS:Cast Iron / Ductile Iron/ Carbon Steel / Stainless
Steel / Alu BronzePRESSURE RATING:PN10, PN16TEMPERATURE:-30°C to 200°CSEAT/LINING:Replaceable Liner / Bonded Liner
NBR/EPDM/VITONCERTIFICATES & APPROVALS:DNV-GL, Lloyds, DNV, ABS, BV Type Approval
3.1 & 3.2 Cert (on request)
Design and Manufacture Conform to API 594
Dimensions Conform to ANSI B16.5
Face to Face dimensions Conform to API 594
Testing Conform to API598PART NAMEMaterialBODYCast Iron; Ductile Iron; Stainless Steel; Carbon steelDISC / PLATEStainless Steel; Carbon steel; BronzeSHAFT / STEMStainless Steel Monel; Stainless Steel InconelSEAT / LININGNBR/EPDM/VITONBOLTSCarbon steelNUTSStainless steel
Double eccentric discs, when closing, the valve contacts the sealing surface gradually, so that it can work without impact and noise.
Micro-elastic metal valve seat, good sealing performance.
Butterfly valve design, quick and sensitive switching, and long lifetime.
The swash-plate structure makes the fluid channel to be streamlined, with small flow resistance and energy saving effect.
Check valves are generally suitable for clean media, and should not be used for media containing solid particles and high viscosity.
Easy maintenance, replaceable valve seat ring,
Adjustable valve body can be stopped to achieve full stroke and positive closure without damage
Integral lifting handle makes maintenance easier
