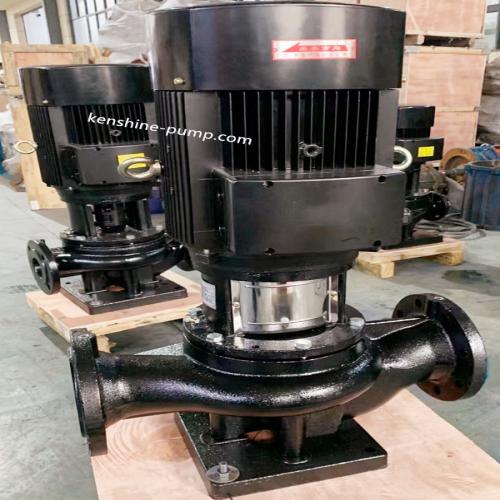

TD Vertical pipeline shaft coupling centrifugal transfer booster water pump

TD Vertical pipeline shaft coupling centrifugal transfer booster water pump
  • Model Number: TD50-39G/2
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

TD50-39G/2 TD Vertical pipeline shaft coupling centrifugal transfer booster water pump Description

Vertical pipeline shaft coupled centrifugal pump

Application fields:

Industrial systems, water supply systems, cooling and air conditioning systems, system pressurization.

The pump is used for conveying clean water without solid particles and other liquids with physical and chemical properties similar to water

Material: Cast iron

Product Description:

Single stage vertical pipeline circulating pump:

pump inlet and outlet are in the same straight line at the bottom of the pump. Pump design for the top can be pulled out of the form of disassembly, which can not affect the pipeline system to repair the pump.

Performance and advantages:

Compact structure

Maintenance is convenient.

Low noise

Optional cast iron or stainless-steel impeller

Technical parameters:

Flow: 4m3/h ~ 750m3/h

Head: 4.5m ~ 108m

Power: 1.1KW ~ 132KW

Liquid temperature: -15℃ ~ +110℃

Frequency: 50 hz / 60 hz


flow rate 4-900m3/h
head 4-110m
pump material cast iron, stainless steel impeller
