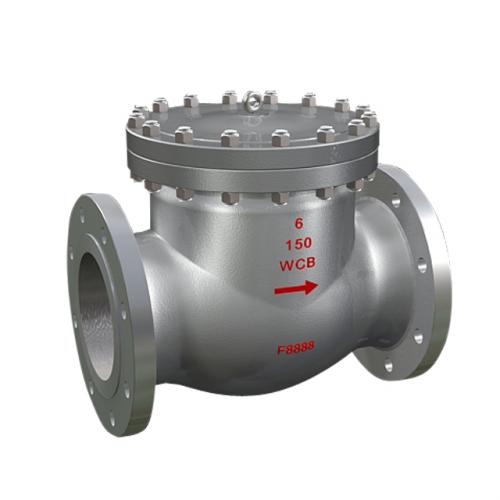

swing check valve

swing check valve
  • Model Number: 00009
  • Brand Name: QUANSHUN
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1 set
  • Supply Capacity: 1000 sets/month
  • Payment: T/T,L/C
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

00009 swing check valve Description

The swing check valve is particularly developed to prevent the medium from backflow. This swing check valve can be used on the pipeline of the petroleum industry, chemical industry, hydraulic power industry  to cut off or control water, steam, oil and other corrosive medium.Features1.The non-return valve is produced with swing structure. All the starting and stopping parts are installed inside the valve body to avoid the leakage.2.Spherical connection structures is adopted between the rocker and disc, which make the valve disc of the swing check valve has certain degree of freedom within the range of 360°. And, micro position compensation is also available.3.The swing check valve with large size is provided with flying rings for convenient lifting.4.With the valve disc limiting device, failure caused by the higher position of the valve disc during closure of the cut-off valve can be avoided.Technical SpecificationsSize:  2”-16” DN50~DN400Pressure: Class 150~Class300  PN1.0~PN6.4Body material :WCB(A105),CF8(304), CF8M(316), CF3(304L),  CF3M(316L) etcSealing material : Rubber, PTFE, Hard alloy, etc.Connection Type: FlangeDesign  Standard: ASME B16.34,ASME B16.10ApplicationsPetroleum industry, chemical industry, hydraulic power industry.
