stainless steel ball valve

stainless steel ball valve
  • Model Number: Q11F
  • Brand Name: WOD/SJFM
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 10
  • Supply Capacity: 50000/month
  • Payment: T/T,Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

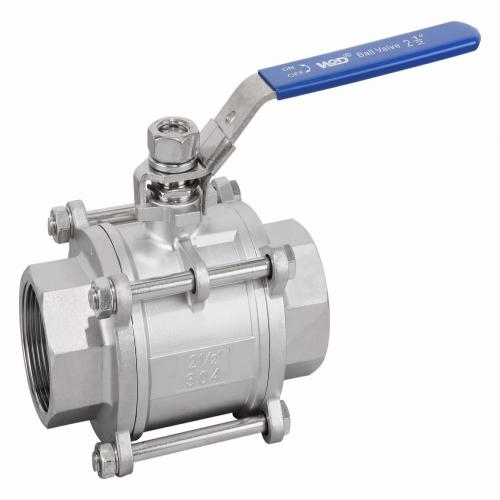

Q11F stainless steel ball valve Description

threaded stainless steel ball valve

Design standard: ASME B16.34  GB/T12237

Thread standard: PT/BSPT/BSP/NPT; DIN259/DIN2999; ISO288/1

Test & inspection: API598  JB/T9092

product style: Q11F-1000WOGP/R

Pressure: 1000PSI

Temperature range: -20 - +180 degree Centigrade

Material: ASME - A351 CF8/CF8M, WCB,


Size: 1/4" - 4"

pressure 1000PSI
Temperature -20 - +180 degrees C.
material CF8 / CF8M / WCB
size 1/4" - 4"
