- Model Number: 0003
- Brand Name: QUANSHUN
- Place of Origin: Henan, China
- Minimum Order Quantity: 1
- Supply Capacity: 1000 sets/month
- Payment: T/T,L/C
- MemberShip: Free Member
- Inquiry Now

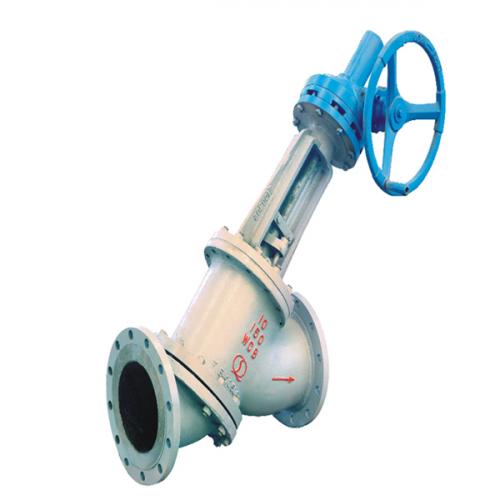

0003 slurry valve Description
Featuring abrasion resistance,high pressure resistance,erosion resistance and anti-scaling performance,the slurry valve is specially offered for controlling or shutting off the slurry.The slurry valves are widely used at alumina,steel ,metallurgy and mining industry.
1.The valve body of y type globe valve for alumina slurry control is consisted of two pieces. The left and right valve bodies are provided in geometric design. Besides the solidworks software for three -dimensional design ,the ANSYS software is also applied for flow field analysis.
2.The valve seat of y type slurry valve is separated from the valve body.The valve seat is installed between the two valve body ,so the valve seat can be replaced easily .
3.To ensure the valve stem has straight line motions ,there is an anti-rotation device provided for the valve stem of the y type slurry valve .
4.Low pressure drop .
5.The range of product is anti-scaling,which are widely use in alumina process.
Pressure ：Class 150~Class 600 PN1.0~PN16
Body material：WCB, CF8, CF8M, CF3, CF3M etc
Connection type :Flange ,weld
Driving method:Manual ,Electric,Pneumatic
Nonferrous metal industry
