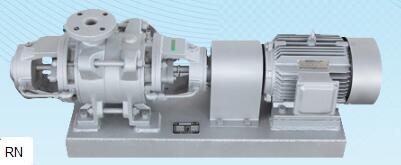

RN high temperature boiler multistage centrifugal feed water pump

RN high temperature boiler multistage centrifugal feed water pump
  • Model Number: RN4
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

RN4 RN high temperature boiler multistage centrifugal feed water pump Description

RN Series heat water pumps are widely used in petrochemical,papermaking,packaging,rubber,food,biological,wood,feed and other industries of high temperature water transportation, water supply pressure, boiler water. Because the pump allows the pumped liquid with high temperature, it can greatly reduce the boiler energy consumption and reduce combustion emissions to achieve the goal of energy saving and emission reduction. It is especially suitable for the recovery of steam condensate.

RN Series heat water pump is used to transfer water or other similar liquids without solid particles or fiber etc impurity and the liquid is not flammable and not explosive.

Liquid temperature:80 to 180 degree Celsius



Pump is horizontal single suction multistage centrifugal pump and maintenance is convenient.

Bearing is self-aligning bearing with high temperature resistance and running is steady

External cooling mechanical seal with good seal and long life

Pump with shaft coupling, low noise and low vibration

Specification shet:

Model    Stages    Motor power(KW)    Speed(rpm)    Flow(m3/h)    3    4    5    6    7

RN4    4    5.5    2950    Head(m)    88    86    84    81    77

5    7.5    2950    111    108    105    101    96

6    7.5    2950    133    130    126    122    116

7    11    2950    155    151    147    142    135

Model    Stages    Motor power(KW)    Speed(rpm)    Flow(m3/h)    6    7    8    9    10

RN6    4    5.5    2950    Head(m)    86    84    80    77    75

5    7.5    2950    108    105    100    97    94

6    11    2950    129    126    120    116    113

7    11    2950    151    147    141    136    132

Model    Stages    Motor power(KW)    Speed(rpm)    Flow(m3/h)    10    11    12    13    14

RN10    4    7.5    2950    Head(m)    96    94    93    91    89

5    11    2950    120    118    116    114    111

6    15    2950    144    142    140    137    134

7    15    2950    168    165    163    160    156




Flow rate 1-15m3/h
Head 10-180m
pump material stainless steel
multistage pump centrifugal pump
transfer pump circulating pump
high temperature pump booster pump
boiler pump feed water pump
pump supplier kenshine-pump
