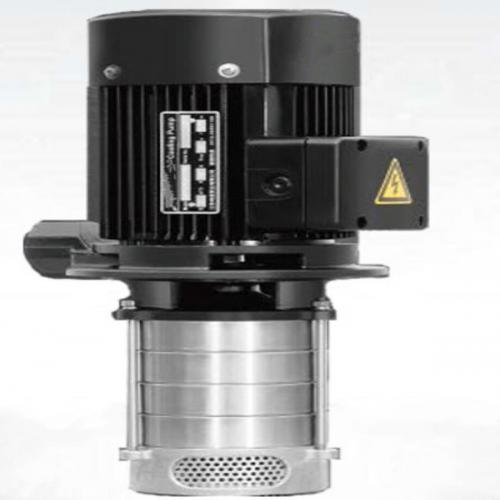

QDYB coolant pump for machine tool

QDYB coolant pump for machine tool
  • Model Number: QDYB2/40-185
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 600sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

QDYB2/40-185 QDYB coolant pump for machine tool Description

Coolant pump for small CNC machine tool / Vertical Submersible multistage centrifugal pump

QDYB series are multi-stage centrifugal pumps equipped with standard motors. Motor shaft and pump shaft are integrated and directly connected. The pump can be equipped with intelligent protector as required to effectively protect the pump from dry rotation, phase loss and overloading etc.  The filter hollow ring around the inlet section of the base can filter large sundries. The outlet section of cast iron is processed with black electrophoretic paint.

The pump is suitable for low viscosity, neutral, non-explosive liquids which does not contain solid material or fiber.  the conveyed liquid should not be chemically corrosive to the pump material.

Temperature:-15 degree Celsius to 104 degree Celsius

Flow range:1-7m3/h


Medium PH value: PH5-9

Motor: Fully closed/air cooled motor /2poles/2900rpm/extended shaft aluminum housing motor,/IP55/F/3*380/220V/50HZ

The immersible depth of the pump can be customized according to the liquid depth of the user's water tank.


The pump is used for conveying machine coolant, lubricating fluid, condensed water, industrial cleaning equipment and other immersion occasions, such as electric spark, chip removal machine, grinding machine, machining center, cooling device, filtration system and so on


flow rate 1-7m3/h
pressure 1-3.6bar
pump material SS304
centrifugal pump multistage pump
vertical pump submersible pump
immersible pump coolant pump
stainless steel pump pump for machine tool
kenshine-pump china pump
