QB Peripheral water pump

QB Peripheral water pump
  • Model Number: QB60
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 600sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

QB60 QB Peripheral water pump Description

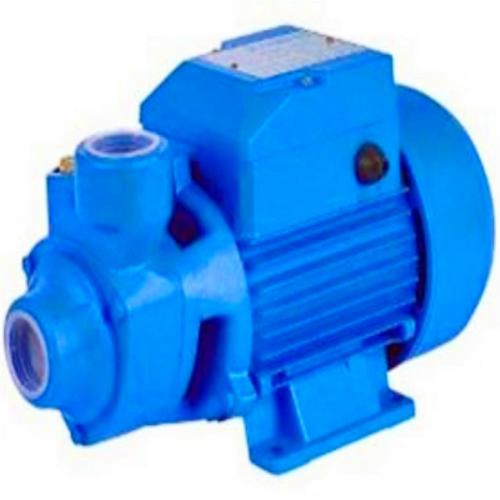

QB peripheral water pump

Peripheral water pump is mainly composed of three parts such as motor, water pump and seal. The motor is asynchronous motor, and the impeller structure of the electric pump is vortex type, which can obtain higher head.  Seal: a single end face machine seal is used between the pump and the motor to make a dynamic seal, The rotating water retaining ring on the shaft plays an auxiliary role in water ejection and isolation.  Fixed stop ring seal uses O - shaped rubber seal ring for static seal

Peripheral water pump is widely used in garden spraying, water supply and drainage in vegetable greenhouse and aquaculture, lift water for well water, tap water pressure and other occasions.

Water temperature: 0 to 40 degree Celsius

Medium PH value: 6.5 to 8.5

The volume ratio of solid impurities shall not exceed 0.1%, and the particle size shall not exceed 0.2mm

50HZ/Single phase/220V/AC,  380V/3Phase/50HZ.


flow rate 2-4.5m3/h
head 36-84m
pump material cast iron or stainless steel
