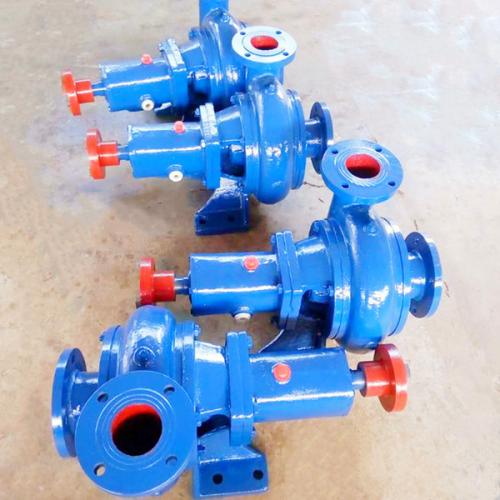

PW Horizontal sewage drainage pump

PW Horizontal sewage drainage pump
  • Model Number: 50PW-65
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 600sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

50PW-65 PW Horizontal sewage drainage pump Description

PW Horizontal sewage drainage pump/mud or sludge pump

Pump mainly consists of Pump cover, pump body, impeller, shaft, shaft seal, bearing box and coupling etc. components. PW Horizontal sewage pump is suitable for pumping liquids below 80℃ with fiber or other suspended impurities for urban and industrial and mining enterprises to remove sewage excrement.  PW series horizontal sewage drainage pump is processed of precision casting with high quality high wear-resistant material (cast iron or stainless steel). The pump with impeller of double blades can effectively pass the particles with 1/2 the pump inlet or fiber with five times of pump inlet.

PW horizontal sewage drainage pump is used for building construction, farmland irrigation and drainage, effluent suction and discharge from the enterprises and institutions. Except for conveying sewage, it is also used as water pump, paper pulp pump, Irrigation pump etc.  The pump is suitable to discharge sewage with particle, dirt water etc. It can also be used for clean water and other weak corrosive medium.

Wide flow channel: There are only two curved blades in the impeller, so the flow channel is wide and smooth, and general turbidity particles can be passed.

Shaft seal with oil seal, good sealing performance, easy to replace.

Outlet direction can be adjusted according to site requirements, convenient installation.  The pump is driven directly by the elastic coupling.

The equipment has reasonable structure, long service life and easy maintenance

The cost is low.  Horizontal sewage pump unit and supporting equipment with less investment, convenient maintenance; Low operating cost;

pumped mud concentration can reach 60%.

flow rate 14-1000m3/h
head 11-35m
pump material cast iron or stainless steel
