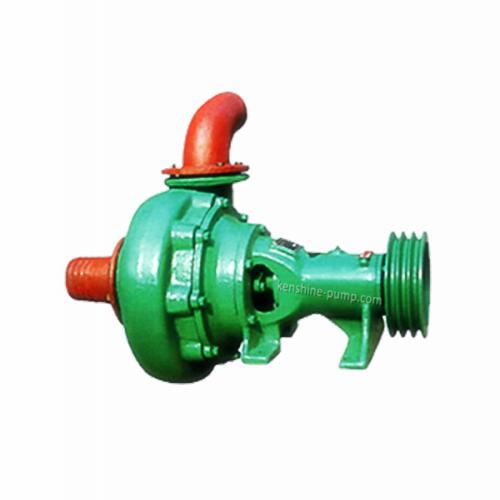

NB Single stage centrifugal slurry pump not clogging pump
- Model Number: NB80-15
- Brand Name: kenshine-pump
- Place of Origin: Shanghai, China
- Minimum Order Quantity: 1SET
- Supply Capacity: 1000Sets per month/month
- Payment: T/T in advance
- MemberShip: Gold Member
- Inquiry Now
NB80-15 NB Single stage centrifugal slurry pump not clogging pump Description
NB Series high efficiency and energy saving sand suction pump is single stage and single suction horizontal centrifugal pump, which is widely used to pump the mud with sand grains at the bottom of rivers and lakes, sludge and impurities in pits and ponds, etc. It is also used for supporting operation of water well drilling rig.
Wear resistant cast iron, long service life; Simple structure, reasonable design, convenient maintenance and balanced operation.
High efficiency and energy saving sand pump is a new product successfully developed according to the characteristics of vertical mud pump in our factory.
Features: good performance, high efficiency, long life, simple structure, easy maintenance, easy to use.
It can pump the mud with high sand content and anti-blocking. It is widely used to absorb the yellow sand at the bottom of rivers, lakes and silt in ponds. Also it is as the ideal energy saving sand pump together with the water well drilling rig and the foundation .
Flow rate: 40 to 400m3/h
Head:10 to 28m
Caliber:65 to 100mm
Model Flow(m3/h) Head(m) Poower(kw) Speed(rpm) Weight(kg)
NB65-10 40 10 3-4 1800 40
NB65-35 35 28 11 2200 40
NB75-20 60 10 3 1430
NB80-15 60 15 5.5-4 1600 65
NB80-28 60 28 11-4 1500 85
NB100-9 100 9 7.5-4 1450 115
NB100-16 140 16 15-4 1450
NB150-20 300 12-30 18.5-37 1200
NB150-150 150 9 1000 150
NB150-A 145 12 20-24 1450
NB150-B 200 20 22 1450
NB150-C 200-250 17-26 22-30 1470
NB200-20 400 23 30-4 1750
|Pump material||cast iron or stainless steel|
|centrifugal pump||slurry pump|
|sewage pump||wastewater pump|
|drainage pump||Mud pump|
|sand pump||not clogging pump|
