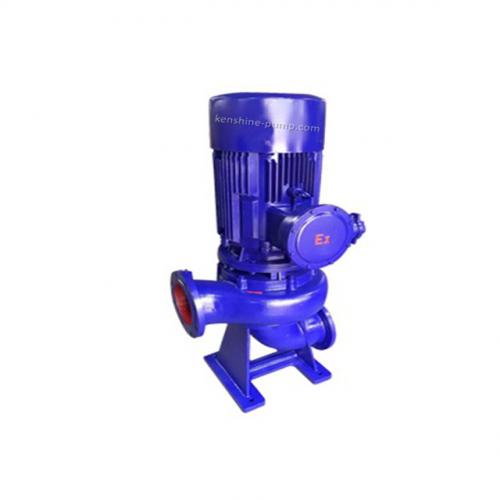

LWB,WLB Vertical explosion-proof sewage pump

LWB,WLB Vertical explosion-proof sewage pump
  • Model Number: 150LWB200-30-37
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1SET
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

150LWB200-30-37 LWB,WLB Vertical explosion-proof sewage pump Description

LWB,WLB Vertical explosion-proof sewage pump is suitable to pump the wastewater as the drainage water pump and irrigation pump. The pump consists of shaft, bearing bracket, impeller, pump seat, motor frame and motor etc. The impeller is for single flow channel or double flow channel and can pass the fluids with fiber diameter 5 times as pump caliber or solid particles diameter 50% as pump caliber. Mechanical seal material is hard alloy. Pump material can be cast iron or stainless steel. LWB,WLB is used to transfer the dirty water with solid particle or clear water or weak corrosive liquids.

Safe, reliable and less maintenance, low noise, less vibration.

Impeller with big flow channel is not clogging

Double seals with double protection for motor

Compact structure, small volume and economic cost

Flow rate:2 to 1500m3/h

Head:3 to 45m

Speed:970 to 2900rpm

Liquid temperature: -15 to 60 Degree Celsius

Liquid PH: 5 to 9

System maximum pressure: 0.6MPA

Flow rate 2-1500m3/h
Head 3-45m
Pump material cast iron or stainless steel
motor common motor or explosion-proof motor
