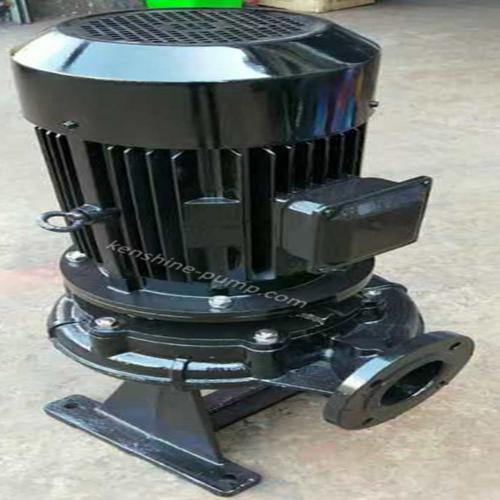

LW Vertical not cloggin pipeline sewage pump

LW Vertical not cloggin pipeline sewage pump
  • Model Number: 80LW-65-25-5.5
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1SET
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

80LW-65-25-5.5 LW Vertical not cloggin pipeline sewage pump Description

LW vertical sewage pump is widely used to convey the wastewater, sewage, dirty water with solid particles or fiber etc impurity in factory ,business zone seriously polluted by wastewater , urban sewage treatment plants, sewage station of main housing, water system, civil air defense system drainage stand, waterworks water supply equipment, hospital, hotel of sewage, municipal engineering, construction, mining machine, rural biogas digester, irrigation and other industries. LW vertical sewage pump can also be used for clean water and weak corrosive medium.


Service conditions of LW vertical sewage pump


1.LW vertical sewage pump are applicable when the rated voltage is 380V and the power supply frequency is 50Hz


2. The temperature of the medium shall not exceed 40 ° c, the density of the medium shall not exceed 1150kg/m3, and the PH value shall be within the range of 5-9.


3 .no more than 1000 meters above sea level;


4. The annual viscosity of conveying medium is not more than 1000CP;


5 the material of pump is mainly cast iron, which cannot be used in corrosive or corrosive media. Stainless steel vertical sewage pump is used for the corrosive wastewater,


LW vertical sewage pump features


1. Double blade impeller structure is adopted to greatly improve the sewage passage capacity


2. The mechanical seal adopts the new grinding pair and runs in the oil room for a long time;


3, the overall structure is compact, small volume, small noise, energy saving effect is significant, easy maintenance, convenient for users to replace;


4, the automatic control cabinet can be chosen according to the demands of liquid level, automatic control pump start and stop. The pump does not need special person to care and use is very convenient;


6, The pump can be used within the designed range of flow and head to ensure that the motor will not overload;


7, When the pump is with outdoor motor, the pump room need not be built and the pump can be directly installed for outdoor use to save costs


Flow rate 2-600m3/h
Head 3-60m
pump material cast iron or stainless steel
