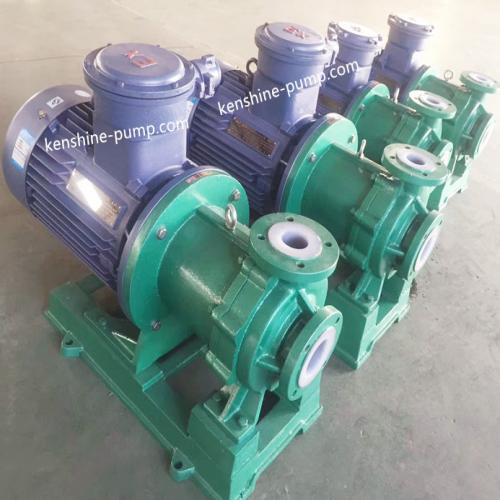

Leakproof fluoroplastic magnetic pump

Leakproof fluoroplastic magnetic pump
  • Model Number: CQB50-32-160F
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T IN ADVANCE
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

CQB50-32-160F Leakproof fluoroplastic magnetic pump Description

leakproof fluoroplastic magnetic pump

The wetted parts of fluoroplastic magnetic pump are made of fluoroplastics (F46/FEP). The pump adopts the Working principle of magnetic pump. The motor drives the external magnetic steel to rotate, the magnetic field passes through the internal sealing assembly, and acts on the internal magnetic assembly to rotate. The internal magnetic assembly and the impeller are integrated, and the liquid medium is sealed through the isolation sleeve to achieve zero leakage in the conveying process. The pump has excellent corrosion resistance and sealing, easy maintenance, and easy disassembly.



Application

It is suitable to convey Strong corrosion, toxic, volatile, flammable and explosive, organic solvents and precious liquid. It is widely used to transport any concentration of acid, alkaline, oil, rare and precious liquid, toxic liquid, volatile chemical medium, especially for flammable, leaky, explosive liquid chemical medium transport.

The pump is Widely used in chemical, acid, alkali, smelting, rare earth, pesticide, dye, medicine, papermaking, electroplating, electrolysis, pickling, radio, forming foil, scientific research institutions, national defense industry and other industries.


flow rate 2-100m3/h
head 3-60m
pump material fluorine plastic FEP/F46
