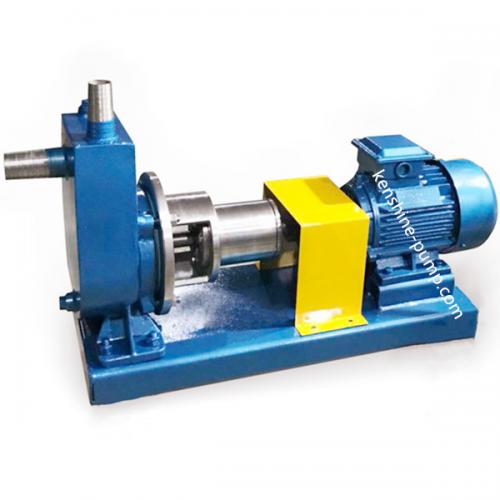

JMZ,FMZ Stainless steel self-priming chemical pump

JMZ,FMZ Stainless steel self-priming chemical pump
  • Model Number: 25JMZ-8
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 800Sets per month/month
  • Payment: T/T IN ADVANCE
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

25JMZ-8 JMZ,FMZ Stainless steel self-priming chemical pump Description

JMZ stainless steel self-priming alcohol centrifugal pump

Pumped fluids:

JMZ, FMZ stainless steel self-priming centrifugal chemical pump is in accordance with the new requirements of users. The pump is with new mechanical seal assembly (no leakage) and can be driven by explosion-proof motor.

JMZ self-priming alcohol pump is suitable to convey (-35 ~ +120℃) all kinds of alcohol, beverage, dairy products, pharmaceutical, gasoline, solvent oil, syrup and other industries. FMZ self-priming chemical pump is suitable for conveying (-35 ~ +120℃) concentrated slurry, acid, alkali, salt and other chemical liquids.



Self-priming performance

JMZ, FMZ Stainless steel self-priming chemical pump does not need bottom valve and irrigation liquids and suck the liquids. Suction height is up 5m. The pump has the advantages of compact structure, small volume, good self-priming performance and convenient operation etc.



Structure:

The pump has the main parts of pump body, impeller, mechanical seal, bracket. Rotation direction: anticlockwise from pump inlet. Installation way: fixed installation or movable installation. Pump inlet and outlet: flange or screw type



Performance range:

Flow rate:2-400m3/h

Head: 8-60m

Pump inlet and outlet: 20mm-200mm

Pump material: stainless steel SS304, SS316 etc.


flow rate 2-400m3/h
head 8-60m
pump material stainless steel
