JGGC high efficiency energy saving boiler feeding water pump

JGGC high efficiency energy saving boiler feeding water pump
  • Model Number: JGGC12.5-15*11
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 600sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

JGGC12.5-15*11 JGGC high efficiency energy saving boiler feeding water pump Description

High efficiency and energy saving boiler feed pump

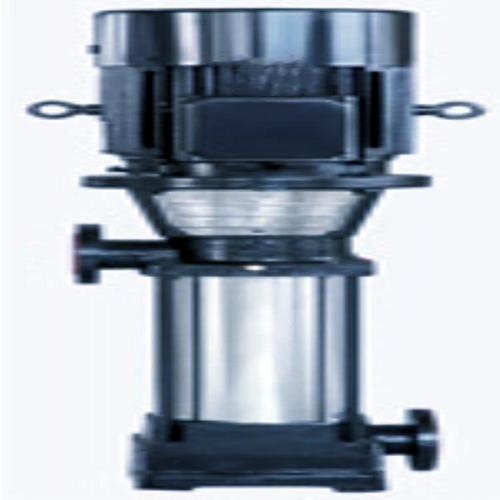

JGGC series vertical multistage centrifugal pumps are used for conveying clear water or liquid similar to clear water.  This pump is suitable for boiler water supply, air conditioning cooling and hot water circulation, variable frequency speed control constant pressure water supply equipment, automatic fire water supply equipment, high-rise building water supply equipment, hydraulic cleaning equipment, water cooling and condensation device, pipeline pressurization and so on.  All stainless-steel pumps are more suitable for medicine, chemical, food, brewing and other industries.

Performance range:

Q = 0.3-240 m3 / h


Medium temperature: 0-110 degrees  Celsius.


The pump is a vertical single-suction multistage centrifugal pump

Hard alloy sliding bearings are used

Shaft seal adopts mechanical seal

Adopt rigid coupling to drive.


JGGC series pumps have the advantages of small volume, light weight, small vibration, low noise, long service life, small footprint, beautiful appearance, especially efficient, energy saving.

Some models can be made with down suction up discharging structure.  Pump inlet and outlet axis Angle can be adjusted for 0,90,180,270 degrees according to the installation requirements.

ModelStagecapacityheadspeedefficiencyShaft powerMotorNPSHrInlet/outletnm3/hmrpm%KWKWmmmJGGC12.529322950541.452.22.1DN5012.530601.72.51627601.962.83948542.1832.112.545602.552.51640602.942.84964542.942.112.560603.42.51654603.922.85980543.635.52.112.575604.252.51667604.92.86996544.357.52.112.590605.12.51680605.862.879112545.

flow rate 0.3-240m3/h
head 16-415m
pump material stainless steel
