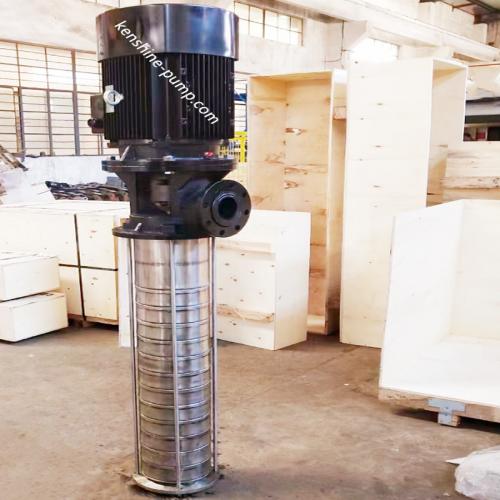

Immersible multistage self priming pump

Immersible multistage self priming pump
  • Model Number: CDLK2-40/4
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 600sets per month/month
  • Payment: T/T IN ADVANCE
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

CDLK2-40/4 Immersible multistage self priming pump Description

Immersible multistage self-priming pump

application range

CDLK/CDLKF is used for conveying machine coolant, lubricating fluid, condensed water conveying, industrial cleaning equipment and other suitable for immersion pump use occasions, different temperature, flow and pressure range, CDLK is suitable for non-corrosive liquids, CDLKF is suitable for mildly corrosive liquids.

It is specifically used in electric spark, lathe, grinder, processing center, cooling device, industrial cleaning equipment, filtration system, etc.

CDLK/CDLKF is a self-priming vertical multi-stage centrifugal immersible pump is installed with standard motor. The motor shaft is directly connected with the pump shaft through the pump head with a coupling. The pump can be equipped with intelligent protector according to the need to effectively protect the dry rotation, phase loss and overload of the pump. To meet the installation depth of the tank or container, the cavity can be installed to change the length of the pump itself.

motor

The motor is fully enclosed, air - cooled two poles standard motor.

Protection class: IP55

Insulation grade: F

Standard voltage: 50Hz :1*220-230/240V

3*200/346V

3*220-240/380-415V

3*220-225/380-440V

Other voltage motors are available on request.

Single-phase voltages from 0.37 to 2.2kW are available.

operating conditions

Thin, clean, non-explosive liquid free of solid particles and fibers, capable of conveying water and water solutions for cooling and cutting lubricants.

Liquid temperature: normal temperature -15℃ to +70℃

Hot water operated + 70 ℃ to + 120 ℃


flow rate 1-20m3/h
head 10-200m
pump material stainless steel
