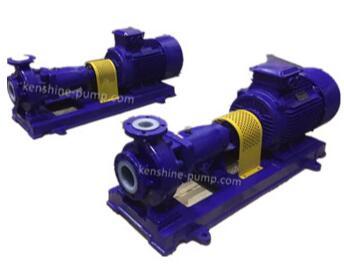

IHF Series fluoroplastic lined chemical centrifugal pump

IHF Series fluoroplastic lined chemical centrifugal pump
  • Model Number: IHF100-80-200
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

IHF100-80-200 IHF Series fluoroplastic lined chemical centrifugal pump Description

IHF Series single stage single suction fluoroplastic alloy centrifugal pump in chemical industry is manufactured as international design and principle of nonmetal pump. The pump has the advantages such as anticorrosion and wearable and anti-high temperature and no aging and high mechanical strength and no toxin decomposer etc. Liquid temperature: -50℃-200℃

Characteristic:
IHF pump body is metal shell with FEP(F-46) lining. Impeller and pump cover are punched by metal with fluoroplastic lining. Shaft seal bellows mechanical seal set outside. Seal ring is made of Silicone carbide. Rotary ring is made of gland packing Teflon or silicone carbide. The advance structure insures anticorrosion and strict seal and low noise and long life etc.

The pump is widely used to transport the liquids and waste water and add the acid etc in chemical industry and petroleum and pharmacy and electricity and food and environment protection and metallurgy and mine and acid cleaning and making paper etc The pump is very suitable to transport the random density acid, alkali and strong oxidant and organic solvent etc corrosive mediums whose temperature is from -85℃ to 200℃.

Working conditions:
Capacity range: 3-100m3/h, Head range: 5-80m
Rotary speed: 1450r/min, 2900r/min, Medium temperature: -50℃~200℃


Flow rate 2-100m3/h
Head 3-80m
Pump material Fluoroplastic liner
seal mechanical seal
motor normal or explosion-proof motor
chemical resistant pump centrifugal pump
industry pump fluoroplastic liner pump
horizontal pump acid,alkali and solvent fluids pump
