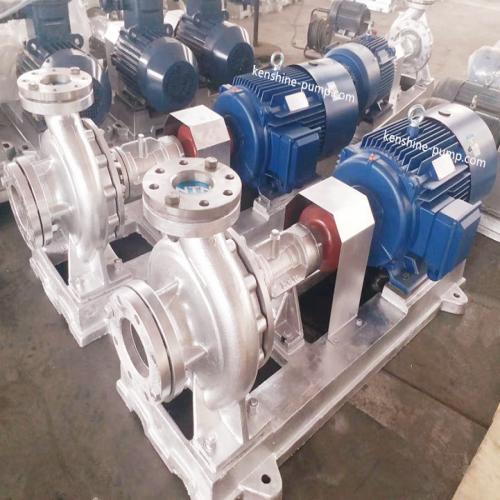

High temperature Thermal oil centrifugal pump

High temperature Thermal oil centrifugal pump
  • Model Number: RY50-32-160
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 800Sets per month/month
  • Payment: T/T IN ADVANCE
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

RY50-32-160 High temperature Thermal oil centrifugal pump Description

Thermal oil pump

RY waterless cooled hot oil pump has been widely used in the system of carrier heating and different industrial fields such as petroleum, rubber, resin, textile, dyeing and printing, construction, road building, machinery shipping, and so on.

RY thermal oil centrifugal pump is suitable to transport high temperature liquids without solid particles and other weak corrosive liquids.  The liquid temperature is less than 350 degree Celsius.



Structure:

RY hot oil pump is for the structure of single stage single suction cantilever foot support. Axial suction port and vertical upward discharge port. The pump is mounted on the base plate together with the motor.

The support of RY hot oil pump adopts ball bearings at both ends with the front end lubricated by lubricating oil and the rear end lubricated by grease. There is an oil pipe between them, which is used to observe sealing condition at any time and retrieve heat conducting oil.

RY hot oil pump adopts natural heat dissipation to change the traditional device of water cooling. It has simple structure, small volume, low cost, reliable performance.



Seal type:

Combination of packing seal and mechanical seal. Packing seal has high temperature resisting for high temperature liquids. Mechanical seal has high mechanical strength and good wear resistance (hard alloy material)

PTFE lip-type seal has the strongest corrosion resistance.


flow rate 4-1200m3/h
head 5-80m
pump material cast iron or stainless steel
