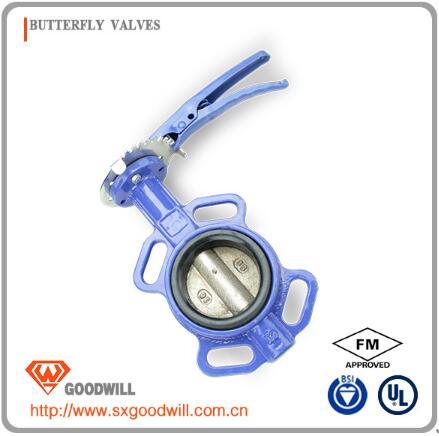

HIG-018 pneumatic water butterfly valve

HIG-018 pneumatic water butterfly valve
  • Model Number: HIG-018
  • Brand Name: HIG
  • Place of Origin: Shanxi, China
  • Minimum Order Quantity: 10Pieces
  • Supply Capacity: 500 Tons/month
  • Payment: L/C,D/P,T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

HIG-018 HIG-018 pneumatic water butterfly valve Description

Material Specification

Part    Material    EN Spec.

Body    Cast Iron    A126 Class B

Ductile Iron    A536 Gr.65-45-12

Disc    Ductile Iron    A536 Gr.65-45-12

Bronze    B148 C95400

Stainless Steel 304    A351 CF-8

Stainless Steel 316    A351 CF-8M

Shaft    Stainless Steel 410    A276 S410 00

Stainless Steel 431    A276 S431 00

Seat Ring    EPDM /NBR

O-Ring    EPDM /NBR

Bushing    PTFE

Bronze    B62  C83600

Valve Standard

ISO 5752/BS5155/BS EN 593/MSS SP-67/API 609

Pressure Temprature and Rating

Working Pressure    16bar/27.5bar

Testing pressure    Shell: 24bar/37.5bar

Seal: 17.6bar/27.5bar

Working Temperature    -20°C to 110°C EPDM Seat

-10°C to 80°C NBR Seat

Suitable  Media    Water, Oil& Gas

Description Products

Size    DN40-DN1200

End flange    ANSI B 16.1, EN 1092, AS 2129

Face to face    ANSI B 16.10; EN 558-1 Series 20

Top flange    ISO 5211

Related products    1. Carbon steel nipples and sockets    2. Flanges

3. Carbon steel butt-welding fittings    4. Pipes

5. High-pressure fittings    6. Valves

7. P.T.F.E .thread seal tape    8. Brass fittings

9. Ductile iron pipe fittings    10. Copper fittings

11. Grooved fittings    12. Sanitary fittings, etc.

Certificate    BSI, ISO9001:2008,FM,UL

Applications    Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.

Buyer’s drawings or designs are available.

Package    1. Cartons without pallets.

2. Cartons with pallets.

Or as buyer’s requirements.

Delivery detail

According to the quantities and specifications of each order.

Normal delivery time is from 30 to 45 days after receiving the deposit.

Port Size DN40-DN1000
Suitable Medium Water, Sewage, Air, Oil, Salts, etc.
Nominal Pressure PN1.0MPa,PN1.6MPa
Body Brass,Stainless Steel,Carbon Steel
Surface Nickel, Brass, Chrome
