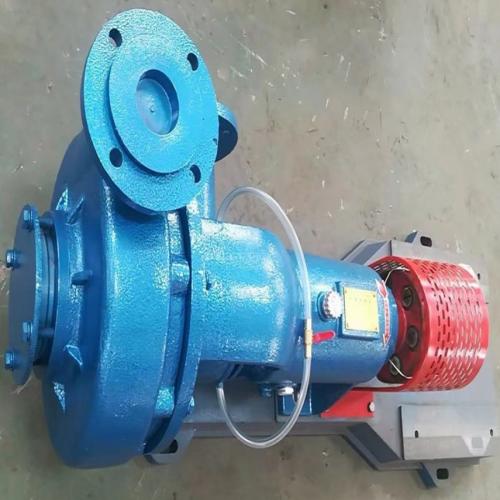

HFM-I filter press feeding pump

HFM-I filter press feeding pump
  • Model Number: 50HFM-I-5-35-3KW-2
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

50HFM-I-5-35-3KW-2 HFM-I filter press feeding pump Description

HFM filter press feeding pump

HFM series leak-free corrosion-resistant and wear-resistant pump is a new type of lining type back suction pump.  The seal of common corrosion resistant and wear-resistant pump is easy to leak when it works.  HFM feeding pump is a new pressure delivery pump with shaft sealing and liquid inlet in the same direction. So HFM feeding pump is no leakage.

 First, the pump inlet is in the same direction as the shaft seal, and the shaft seal is under negative pressure, so it will not leak, which overcomes the shaft seal leakage and damage from common pump.

Wide range of application: the pump is equipped with a variety of interchangeable lining materials, can be applied to a variety of chemical properties of corrosive, abrasive clear liquid and slurry transport, and a variety of different materials of spare parts exchange performance is good, user adjustment is very convenient.

Low operating cost: the main factors are two, one is the wearing parts of the pump cover and suction inlet using a split structure, with independent corrosion resistant wear wearing parts, convenient replacement, more economic.  Second, the seal of the pump does not use back impeller decompression, which saves the consumption of shaft power and saves energy

HFM-I single stage, HFM-II two stages pump has the high-pressure delivery.

HFM filter press feeding pump is suitable to Convey all kinds of corrosive and non-corrosive clear liquid and slurry within 100 degrees Celsius or used as feeding pumps for all kinds of filter press.

flow rate 5-800m3/h
head 10-90m
pump material steel lined UHMWPE,
