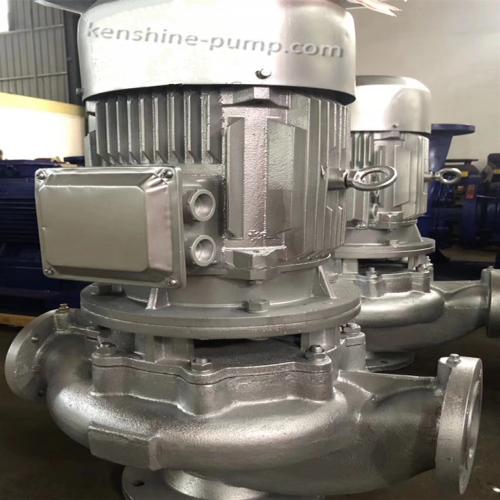

GW Vertical pipeline centrifugal not clogging pump

GW Vertical pipeline centrifugal not clogging pump
  • Model Number: 80GW-65-25-7.5
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1SET
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

80GW-65-25-7.5 GW Vertical pipeline centrifugal not clogging pump Description

GW Vertical pipeline sewage pump is with volute impeller of not clogging.  The structure design and discharge performance of pump body and impeller is the same as the WQ Submersible sewage pump. GW vertical pipeline sewage pump can be use for pipeline booster, drainage water and circulation and can also be used to transport the wastewater with solid grain or fiber etc impurity


Features:


1.. Strong sewage discharge capacity and not clogging


2, reasonable design, supporting motor power is small, energy-saving effect is significant.


3. Wear resistant mechanical seal.


4, compact structure, easy to move, simple installation, no need to build pump room, reduce the cost of the project.


5, able to operate in the full head range and ensure that the motor will not overload.

6. The center line of inlet and outlet is on a straight line, which can be directly installed anywhere in the pipeline.




Application:


Used for wastewater discharge by enterprises


2.. Discharge system of municipal sewage treatment plant.


3. Sewage drainage station in residential area.


4. Subway, basement and drainage station of civil air defense system.


5. Sewage discharge from hospitals, hotels and high-rise buildings.


6. Discharge of thin mud from municipal works and construction sites.


7. Sewage discharge from farms and irrigation of rural farmland.


8, water supply equipment for water plant.


9. Mine exploration and water treatment equipment.


10.Water supply and drainage for water conservancy projects


Flow rate 2-600m3/h
Head 3-50m
pump material cast iron or stainless steel
