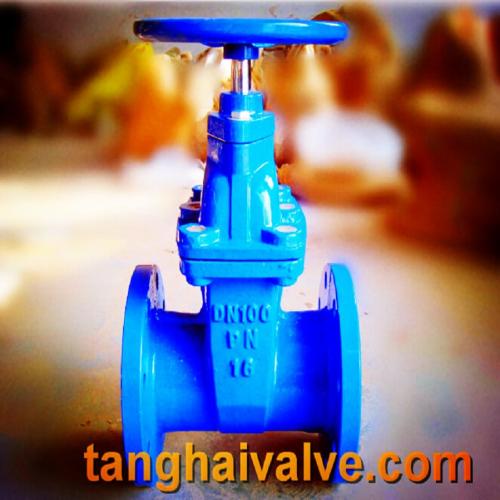

Gate valve (TH-GTV)
- Model Number: TH-GTV
- Brand Name: THV
- Place of Origin: Tianjin, China
- Minimum Order Quantity: 10sets
- Supply Capacity: 1000sets/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
TH-GTV Gate valve (TH-GTV) Description
TYPE:Wafer, double flangeSIZE & CONNECTIONS:Resilient seated: DN50 to D600
Metal seated: DN50 to DN1200MEDIUM:Waste water, Water, Seawater, Air, Inert Gas, Oil.MATERIALS:Cast Iron / Ductile Iron/ Carbon Steel / Stainless
Steel / Alu BronzePRESSURE RATING:PN10, PN16, PN25TEMPERATURE:-30°C to 200°CSEAT/LINING:Replaceable Liner / Bonded Liner
NBR/EPDM/VITON; SS/BRONZECERTIFICATES & APPROVALS:DNV-GL, Lloyds, DNV, ABS, BV Type Approval
3.1 & 3.2 Cert (on request)
Design and Manufacture Conform to AWWA, BS5163, DIN-F4,F5
Dimensions Conform to EN1092-2,ANSI B16.5
Face to Face dimensions Conform to EN558-1, API 594, DIN3202
Testing Conform to EN12266-1, API598
PART NAMEMaterialBODYCast Iron; Ductile Iron; Stainless Steel; Carbon steelDISC / FLAPStainless Steel; Carbon steel; BronzeSHAFT / STEMBrass, Stainless Steel Monel; Stainless Steel InconelSEAT / LININGNBR/EPDM/VITON
SS/BRONZEBOLTSCarbon steelNUTSStainless steelGASKET/PACKINGGraphiteNAME PLATEAluminumWASHERSteelHANDWHEELCast IronBUSHING/RINGCast Brass
Low flow resistance.
Less effort when opening and closing.
Large height and long opening and closing time.
Water hammer phenomenon is not easy to produce. The reason is the long shutdown time.
The medium can flow in any direction on both sides, easy to install.
The structure length is small.
The shape is simple, the structure length is short, the manufacturing process is good, and the application range is wide.
The structure is compact, the valve has good rigidity, the channel is smooth, the flow resistance is small, the sealing surface is made of stainless steel and hard alloy, and the service life is long. The use of PTFE packing is reliable and easy to operate.
The overall dimensions and opening height are large. The space required for installation is large.
During the opening and closing process, there is relative friction between the sealing surfaces, which can easily cause scratches.
Gate valves generally have two sealing surfaces, adding some difficulties to processing, grinding and maintenance.
