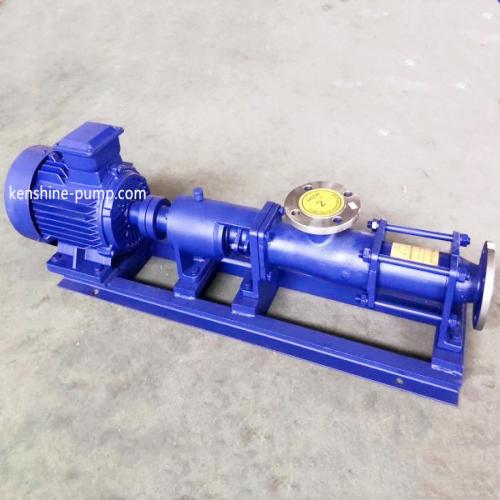

G Single screw eccentric rotor pump mono pump

G Single screw eccentric rotor pump mono pump
  • Model Number: G50-1
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 600sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

G50-1 G Single screw eccentric rotor pump mono pump Description

Single screw eccentric rotor pump mono pump

Single screw pump is called as mono pump and eccentric rotor pump. It is for positive displacement pump. It relies on the screw shaft (the rotor) and rubber set of mesh (stator), when the power end by universal joint drives rotor, stator center around the rotor to work and stator is continuously meshed and further forms the vacuum chamber, the vacuum chamber is for uniform axial movement, the medium is conveyed from inlet to outlet. The medium into suction vacuum cavity flows through the stator without stirring and destruction. Stable flow rate and output pressure.

Driving motors

directly driven by motor with shaft coupling, or low speed motor with belt transmission, gearbox, variable speed motor etc.

Application:

Transport of industrial sewage, domestic sewage, sewage sludge containing solid particles and short fiber.

Oil water, oil residue, oil sewage, etc. conveying.

Transfer of crude oil, mixtures of crude oil and water, mixtures of coal gas and water,

Conveying all kinds of viscous slurry, emulsion, all kinds of ointment

All kinds of sticky starch, concentrated lees, grain products residue, all kinds of sauces, slurry, solid slurry transport

cement mortar, lime slurry, coating and paste transport.

All kinds of suspension, grease, all kinds of colloidal slurry, all kinds of adhesive liquids transport

Oil ink, paste, paper pulp, slurry conveying.

Coal water slurry transportation


flow rate 0.5-200m3/h
pressure 0.6-2.4MPA
pump material cast iron or stainless steel
