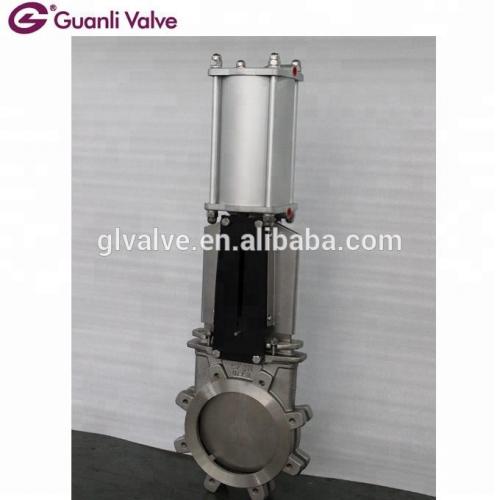

Full lug knife gate valve

Full lug knife gate valve
  • Product Name: Full lug knife gate valve
  • Model Number: GLK09
  • Brand Name: Guanli Valve
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1 Set
  • Supply Capacity: 10000 Sets/month
  • Payment: Visa, T/T, L/C, Western Union
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

Full lug knife gate valve GLK09 Description

Guanli full lug type valve designed according to MSS-SP-81 and TAPPI-TIS 405 for industrial service applications.The design of the body and seat assures non-clogging shutoff on suspended solids in industries Such as:

*Pulp and Paper
*Power plants
*Chemical plants
*Food and Beverage


Air actuated Knife Gate Valves Specifications

Cylinder Covers in Die Casting Aluminium

Cylinder body:Aluminium Alloy

Lateral Covers for safety operation as standarded.

Pneumatic accessories available: Limit switches,Proximity switches,Solenoid,Filter,etc

Material Casting
Pressure Low Pressure
Temperature of Media Low Temperature
Body CF8M/CF8/904L/4A/5A
Knife SS304,SS316,etc
Yoke ANSI 1045
Standard MSS SP81
