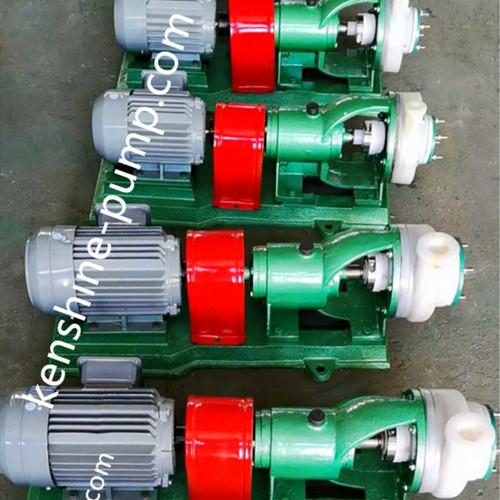

FSB Fluorine plastic unloading acid pump

FSB Fluorine plastic unloading acid pump
  • Model Number: 50FSB-30
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T IN ADVANCE
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

50FSB-30 FSB Fluorine plastic unloading acid pump Description

FSB fluorine plastic centrifugal pump i

Pump body adopts metal shell lining FEP (F46) and pump cover, impeller and shaft sleeve are fluorine plastic with metal insert outsourcing whole sintering pressure molding, shaft seal  mounted outside using bellows mechanical seal, static ring choose 99% alumina ceramic or silicon nitride, ring with four fluorine filling materials, corrosion resistant.

FSB fluorine plastic centrifugal pump is widely used in automobile manufacturing pickling, painting process, Electrolyte transfer in non-ferrous metal smelting, The technological process of chlorine water, wastewater treatment and acid addition in ionic membrane caustic soda project etc.

FSB fluorine plastic centrifugal pump is Suitable for conveying any concentration of sulfuric acid, hydrofluoric acid, hydrochloric acid, acetic acid, nitric acid, strong alkali, strong oxidizer, organic solvent, reducing agent and other harsh conditions of the strong corrosive medium. It is one of the important corrosion resistance equipment.

FSB fluorine plastic centrifugal pump between pump and motor has two connections. (FSB type Shaft coupling and FSB-D type close couple). Flow components are all made of fluoroplastic alloy and has the compact structure, simple operation, and low price. Two types of pump case, impeller, machine seal and so on can be used interchangeably.




flow rate 1-100m3/h
head 8-35M
pump material fluorine plastic FEP/F46
