FPZ Corrosion resistant self priming non-metal pump

FPZ Corrosion resistant self priming non-metal pump
  • Model Number: 40FPZ-18
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 600sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

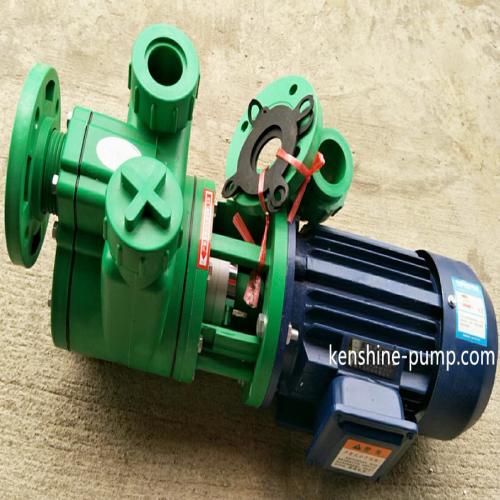

40FPZ-18 FPZ Corrosion resistant self priming non-metal pump Description

 FPZ Corrosion resistant polypropylene self priming pump /Non-metal pump

FPZ self-priming non-metal pump is made of reinforced polypropylene FRPP (CFR-PP) to have high mechanical strength and corrosion resistance.  The pump cavity is provided with a liquid suction chamber, liquid storage chamber, liquid return check valve, gas-liquid separation chamber, reflux hole so that the pump has the function of self-priming. Suction height: 3m to 4m.  The pump is equipped with anticorrosion mechanical seal and has no leakage.

Impeller and shaft are integrated. The pump and motor can be close coupling or shaft coupling. The pump is Suitable for convey general acid, alkali and salt etc. chemical liquids/fluids and widely used in chemical, pharmaceutical, food, smelting, environmental protection, sewage treatment, inorganic salt and other industries. The temperature of pumped fluids: -10 to 90 degree Celsius.

MODELInlet/outletflow rateheadspeedsuction heightpower(mm)(m3/h)(m)(r/min)(m)(kw)25FPZ-10(D)25×202.510284030.5532FPZ-11(D)32×253.411284030.7540FPZ-1840×321118284031.550FPZ-2050×401320284052.265FPZ-2565×50262528405480FPZ-3280×655032284057.5100FPZ-40100×80100202840511

flow rate 2-100m3/h
head 10-32m
pump material reinforced polypropylene PP
self priming pump suction height 4m
acid pump non-metal pump
circulating pump transfer pump
chemical pump corrosion resistant pump
kenshine-pump china pump
