FPG polypropylene plastic pipeline centrifugal pump

FPG polypropylene plastic pipeline centrifugal pump
  • Model Number: 50FPG-28
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

50FPG-28 FPG polypropylene plastic pipeline centrifugal pump Description

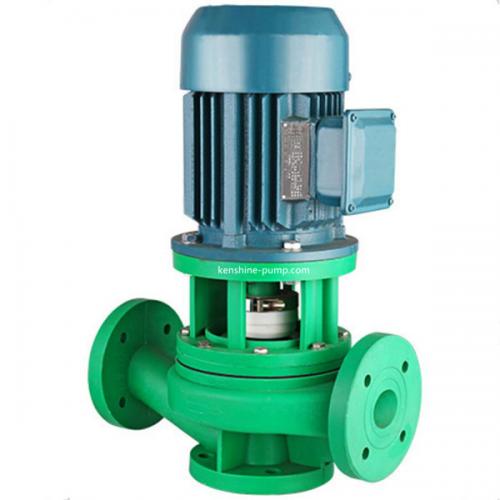

FPG polypropylene pipeline vertical centrifugal pump

FPG series corrosion resistant pipeline centrifugal vertical pump is made of reinforced polypropylene (RPP) by injection molding process. The inlet and outlet diameter of FPG vertical pipeline pump is the same and locate on the same line.



Advantages:

compact and beautiful appearance, small floor space. Pump can be installed in the pipeline as a valve. Pump installation is very convenient. RPP (reinforced polypropylene plastic) has high mechanical strength, strong corrosion resistance. Pumped liquid does not contact with metal, shaft seal adopts external mechanical seal with long service life, high efficiency, low price, wide range of media, It is an ideal pump to replace stainless steel and other non-metallic pumps.



Pumped liquids

RPP material: non-toxic, resistant to general acid, alkali and salt, working temperature -14℃ ~ 80℃. So FPG polypropylene plastic pipeline vertical pump is widely used in chemical pipeline transportation. It is suitable for transportation of acid, alkali, salt, acid and other non-oxidizing acid and PH less than 7 acid salt and other corrosive liquid.



Application

FPG pump is used to convey Corrosive liquid. It is ideal pump in chemical, light industry, environmental protection, waste treatment etc.



Performance range

Flow rate: 3-22m3/h

Head:10-28m

Caliber: 25-50mm

Motor power:0.55KW-4KW


flow rate 3-22m3/h
head 10-28m
pump material RPP reinforced polypropylene plastic
