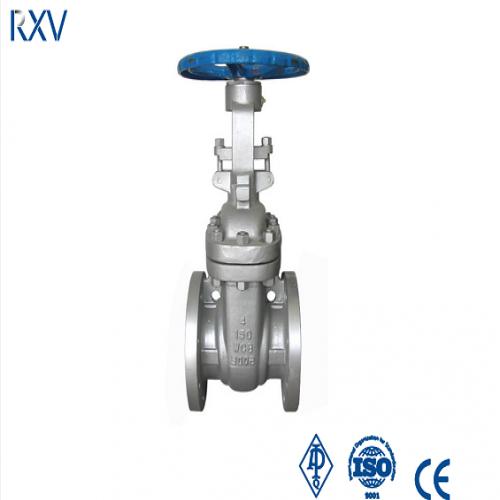

Flanged Casting Gate Valve 150LB 2"

Flanged Casting Gate Valve 150LB 2"
  • Model Number: G111
  • Brand Name: RXV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 100Ton/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

G111 Flanged Casting Gate Valve 150LB 2" Description


2 inch - 48 inch


Pressure Rating

150LB - 2500 LB


Standard Connections

Flanged Ends (RF,FF)



Body/Bonnet: A216WCB,WCC,A217 WC6,WC9,C5,C12,A352 LCB,LCC,A351 CF8, CF8M, CF3,CF3M,CF8C,CN7M, ETC

Seat: A105+13CR / A105+STELLITE 6,ETC

Stem: A182 F6(13CR) / A182 F304/F316

Trim: NO.1 ‐ NO.14


Features And Benefits

Full Bore

Rising Stem

Bolted Bonnet OS&Y, Or Pressure Seal Bonnet

Flexible Wedge Or Solid Wedge

Threaded Or Weld Seat Ring

Operated By Handwheel,Gear,Electric, Pneumatic Actuator



Design & Manufacturer: API 600

Face To Face :ANSI B16.10

End Flange Dimension : 2”-24” to ANSI B16.5 / 26”-48” to MSS SP-44 /API 605

BW ENDS to ANSI B16.25

Checking & Test : API 598

Pressure-Temperature: ASME B16.34

NACE MR-01-75


Other sizes and pressure classes available. Contact the company for specifications.
