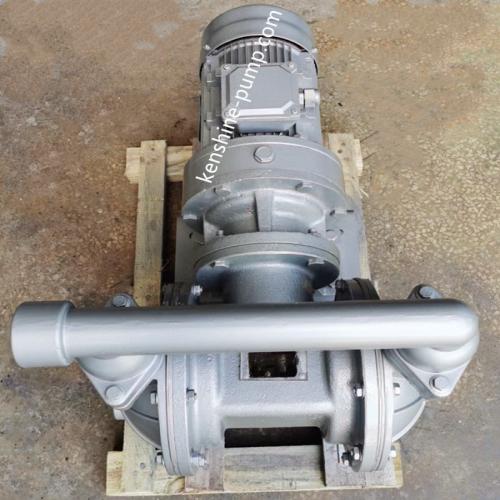

electric double diaphragm transfer pump

electric double diaphragm transfer pump
  • Model Number: DBY-25
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 600sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

DBY-25 electric double diaphragm transfer pump Description

Electric double diaphragm transfer pump

The motor drives the two diaphragms on the plunger at both ends of the left and right to do reciprocating motion through the reducer box.  In the left and right two pump chambers, equipped with up and down four one-way ball valves to match diaphragm movement, resulting in changes in the volume of the working chamber, forcing the four one-way valve ball alternately open and close, so that the liquid is constantly inhaled and discharged.

Diaphragm material: Neoprene rubber, fluorine rubber, nitrile rubber

Pump body material: cast iron, stainless steel, aluminum alloy, fluoroplastic or fluoroplastic liner.

Motor: Normal standard motor, explosion-proof motor, speed regulating motor

Max suction height:5m, Max particle diameter of pumped liquids:10mm

Pump inlet and outlet: 10mm to 125mm, discharge pressure:0.3MPA,

No leakage, long life


Electric diaphragm pump is suitable to pump

all kinds of highly toxic, flammable, volatile liquid.

all kinds of strong acid, strong alkali, strong corrosion liquid.

high temperature medium to 150celsius degree.

as a variety of filter press before the pressure device.

hot water recovery and circulation.

Loading and unloading of oil tanker, oil depot and oil products.

Pump kimchi jam, mashed potatoes, chocolate, etc.

pump paint, gum, pigment adhesive.

all kinds of porcelain glaze cement grouting mortar mud.

all kinds of rubber pulp latex, organic solvents, fillers.

Use pumps to remove sewage and remaining oil from tankers and barges.

Hops and baking powder pulp, syrup and molasses.

pump suction mine, tunnel, tunnel, sewage, sediment.

all kinds of special media suction.

flow rate 0.5-30m3/h
head 30m
pump material cast iron, stainless steel, aluminum alloy, PP plastic
