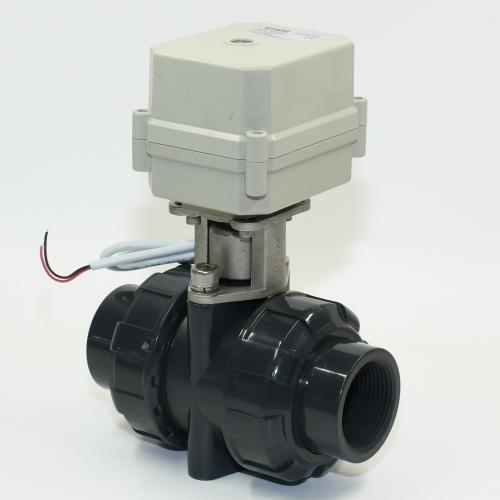

DC12/24V 3 wires control 2-way NPT/BSP 2'' UPVC Motorized Ball Valve

DC12/24V 3 wires control 2-way NPT/BSP 2'' UPVC Motorized Ball Valve
  • Model Number: A100-T50-P2-C
  • Brand Name: OEM
  • Place of Origin: , China
  • Minimum Order Quantity: 1
  • Supply Capacity: 10000/month
  • Payment: T/T, Paypal,Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

A100-T50-P2-C DC12/24V 3 wires control 2-way NPT/BSP 2'' UPVC Motorized Ball Valve Description

Product Parameters:

Product size: NPT/BSP  2''

Maximum working pressure: 1.0MPa

Circulation medium: Fluid,air

Rated votage: DC12V

Wiring diagram:CR303

Working current:≤1A

Open/close time: ≤15s

Life time: 70000times (testing pressure is 0.4MPa,medium is water)

Valve body material: PVC

Actuator material: PPO

Sealing material: EPDM&PTFE

Actuator 90°

Torque force: 10N.m

Cable length:0.5m

Environment temperature:-15℃~50℃

Liquid temperature:2℃~90℃

Manual override:No

Open/close indicator:Yes

Protection class:IP67






Wiring CR303:


Packing method:

1pc/inner carton,3pcs/master carton,

Labels: Tonhe brand label, neutral label and customized labels (optional)

Special packing requirements and packing qty negotiable.


Inspection: professional inspection before packing



Company Overview:

Taizhou Tonhe Flow Control Equipment Co.,Ltd is located in a beutiful city Huangyan,Taizhou,Zhejiang,China,

specialized in the development,design,manufacture,sales and technical servise of electric ball valve.

Our products are exported to many contries and areas all over  the world,mainly in Europe&America,which won customer's trust and praise.



Application range:


1.air pump tank automatic drainage

2.automatic watering

3.water treatment

4.energy saving

5.industrial automation

6.other small equipment





Related Products:




Contact way:

Sales: Esther (tonhe07)

Mob.: +86 18072535389(Wechat)

Thank you for your business!


Size 2'' DN50
Valve Material UPVC
Actuator Material PPO
Working voltage DC12/24v
Wiring CR303
Working temperature 5-55℃
Maximum working pressure 1.0MPa
Circulation medium Fluid,air
