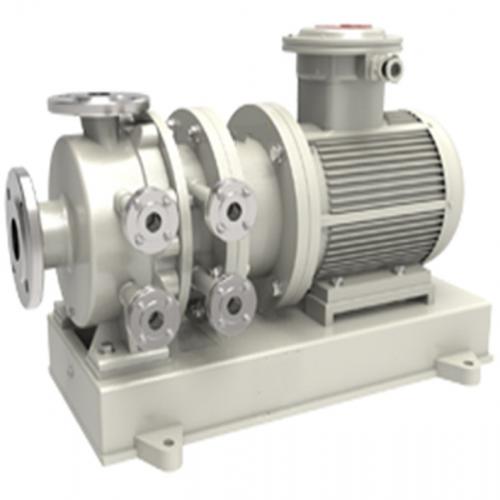

CQB-GB stainless steel magnetic pump with cooling device or heat preservation device
- Model Number: CQBG(B)50-32-160
- Brand Name: kenshine-pump
- Place of Origin: Shanghai, China
- Minimum Order Quantity: 1
- Supply Capacity: 600sets per month/month
- Payment: T/T in advance
- MemberShip: Free Member
- Inquiry Now
CQBG(B)50-32-160 CQB-GB stainless steel magnetic pump with cooling device or heat preservation device Description
Stainless steel high temperature heat preservation magnetic pump (no leakage)
Non-leakage magnetic high temperature pump (heat preservation pump) is a new pump with application of modern magnetic principles. It uses the magnetic transmission of permanent magnet to implement torque’s contactless transmission. When electric motor drives outer rotor (outer magnetic steel) assembly rotating, under magnetic field, magnetic line of force pass through distance sleeve to drive inner rotor (inner magnetic steel) assembly rotating synchronously with impeller. The purpose of pumping medium with No leaking is due to the medium closed in still distance sleeve. The heat preservation device is settled on pump body and pump cover, which allow to use steam to heat medium in pump body, ensure medium will not condense, crystallize or gasify, completely solve the problem of shaft seal leakage, condensation, crystallization and gasification of mechanical pump. This new design industrial pump, with many characteristics of full sealing, no leakage, No pollution and energy-efficient, completely solve the problem of shaft seal leakage of mechanical pump. Its performance already reaches international standard, thus can replace the expensive imported chemical pumps.
1. Non-leakage magnetic high temperature pump (heat preservation pump) is a new type industrial pump of full sealing, no leakage, no pollution.
2. The flowing-passed components like pump body, inner rotor, pump cover, impeller, distance sleeve etc. are all made of superior stainless steel or special materials
3. Two-ply heat preservation devices are settled on pump body and pump cover, which allow to use steam to heat preservation medium in pump body, ensure medium will not condense, crystallize or gasify.
4. New type permanent magnetic with good magnetism, high temperature resistant and no demagnetization.
5. Shaft sleeve, sleeve bearings are made of graphite and PTFE material with good characteristic of superior wear resistance and high temperature resistance, lubrication groove setting, which guarantee the pump’s working life.
6. Enclosed static seal complete solves the problem of dielectric leakage.
7. Direct coupling pull back design. No need to discount pipe, easier maintenance.
8. Horizontal mount, compact structure, low voice, small vibration, small occupation and stable operation.
9. No contact and no friction, change coupling transmission to synchronic pulling, power consumption of small, high efficiency, and has a damping effect, reducing vibration on the pump motor and pump in the effects of cavitation vibration when the impact of the motor.
The pump is widely used in many fields or processes like petroleum, chemical, acid, alkali, rare earth, smelting, pesticides, dyes, medicine, paper making, electroplate, electrolysis, acid pickling, radio, formed foil, research organizations and national defense, etc. Particularly be applicable to delivery medium of flammable, explosive, volatile, toxic, strong acid and alkali, organic solvents and other expensive liquids etc.
