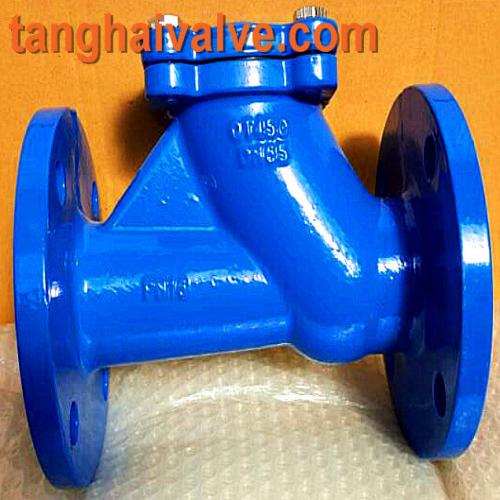

Ball check valve (TH-CKV-BA)
- Model Number: TH-CKV-BA
- Brand Name: THV
- Place of Origin: Tianjin, China
- Minimum Order Quantity: 10sets
- Supply Capacity: 1000sets/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
TH-CKV-BA Ball check valve (TH-CKV-BA) DescriptionTYPE:Wafer, double flangeSIZE & CONNECTIONS:DN40 to D400MEDIUM:Waste water, Water, Seawater, Air, Inert Gas, Oil.MATERIALS:Cast Iron / Ductile Iron/ Carbon Steel / Stainless
Steel / Alu BronzePRESSURE RATING:PN10, PN16TEMPERATURE:-30°C to 200°CSEAT/LINING:Replaceable Liner / Bonded Liner
NBR/EPDM/VITONCERTIFICATES & APPROVALS:DNV-GL, Lloyds, DNV, ABS, BV Type Approval
3.1 & 3.2 Cert (on request) PART NAMEMaterialBODYCast Iron; Ductile Iron; Carbon steelBALL FLOADCI/DI/WCB + NBR/EPDM/PTFEGASKETNBR/EPDM/PTFEBONNETCI/DI/WCBBOLTSA2/Carbon steelWASHERWCB /Stainless steel
Large flow rate, small flow resistance pressure loss,
The sealing performance is very good, no noise when closing, which can reduce the water shock wave.
Can be installed horizontally or vertically.
It can be used for pump outlets of cold water, hot water, industrial and domestic sewage network to prevent backflow of media.
All the equipment, devices and pipelinesshould install check valves, In order to prevent backflow of media
