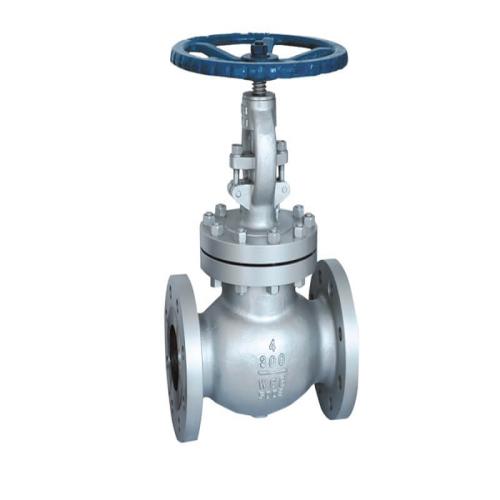

ANSI API Cast Steel And Stainless Steel Globe valve

ANSI API Cast Steel And Stainless Steel Globe valve
  • Model Number: J41H-150LB
  • Brand Name: Wesdom
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 300/month
  • Payment: T/T, L/C , Western Union
  • MemberShip: Silver Member
  • Inquiry Now
  • Bookmark & Share:

J41H-150LB ANSI API Cast Steel And Stainless Steel Globe valve Description

Adoptive standards:



ANSI Globe Valve Spare parts Material:
BodyASTM A216WCBASTMA351 CF8
DiscWCBCF8CF8MMonel
StemF6aF304F316MonelF304
Disc Sealing face13Cr13CrSTL304STL316STLMonel304304STL
Seat Sealing face13CrSTLSTL304STL316STLmonel304STLSTL
BodyASTM A351 CF3ADTM A351 CF8MASTM A351 CF8
Disc
StemF304LF316F316L
Disc Sealing face304L304LSTL316316STL316L316LSTL
Seat Sealing face304LSTLSTL316STLSTL316LSTLSTL



Nominal PressureSheell TestWater Seal TestGas Seal TestMPaLbf/in2MPaLbf/in2MPaLbf/in21503.14502.23150.5~0.760~1003007.811255.681560015.3222511.2163090023.1335016.82440150038.4557528.14080250064.6936747.46873

;

Features:

1.Simple structures.Easier to be manufactured and repaired.
2.Small working stroke,short opening and closing time.
3.Good sealing performance,small friction between sealing face and life long.
4.The friction between sealing face is smaller than gate valve during the process of opening and closing.And it’s wear-resistant.
5.It usually have only one sealing face,good manufacturing process and easy to be repaired.
6.The structure style of globe valve’s body can be divided into straight-through, three-and right-angle type.



Application:

1.Petroleum;
2.Chemical industry;
3.Metallurgy;
4.Power;
5.Paper-making;
6.Pharmacy;
7.Food;
8.Water-treatment.


Nominal Size DN: 50-600(mm)
Nominal Pressure 150LB-1500LB
Applicable temperature -20℃-350℃
Suitable medium air,liquid
Material of body Cast steel,stainless steel
