Tianjin Tianfei High-Tech Valve Co.,Ltd. was founded in 2009, main in producing and supplying products like Electric valve, Motorized valve, Pneumatic valve and so on, our products are selled to South Asia, Southern Europe, Northern Europe and other markets.

5V 12V 24V 110V 220V 2 way 3-way motorized ball valve

5V 12V 24V 110V 220V 2 way 3-way motorized ball valve
  • Model Number: CWX-15
  • Brand Name: TF
  • Place of Origin: Tianjin, China
  • Minimum Order Quantity: 1 Piece
  • Supply Capacity: 20000 Piece/month
  • Payment: L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

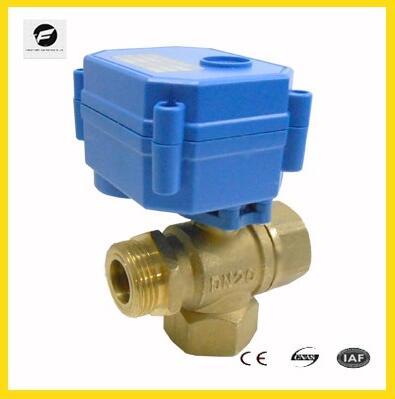

CWX-15 5V 12V 24V 110V 220V 2 way 3-way motorized ball valve Description

Mini Motorized Ball Valve, Size from 1/4" to 1". AC/dc 5V, 12V, 24V, 110V, 220V. 2-way and 3-way, brass, stainless steel, CPVC


Mini dimension suits for small equipment

Patented technology-floating seal structure

Long service life 700,000 to 100,000 circles

Low working current, only 60 to 80mA

IP67 and F type are available

Manual override function is safe and easy



Water treatment

Small equipment for automatic control

Replacing solenoid valve, particularly when solenoid cannot work reliably

Technical parameters:

Size: 1/2 to 1 inches

Material: stainless steel (304, 316), brass, PPO

Voltage: 5, 12, 24, 110 to 220V AC/DC

Working pressure: 1.0 or 1.6mPa

Actuator rotation: 90 degree 5V 12V 24V 110V 220V 2 way 3-way motorized ball valve

Rotation direction: double acting

Power: maximum 5W

Manual override: available

Material of main parts:

Actuator: heat-resistant ABS

Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings .

Body: brass or stainless steel

Ball: brass or stainless steel

Stem: brass or stainless steel

Material brass or SS304 Stainless Steel
Temperature of Media Medium Temperature
Port Size 1/2 to 1
Actuator rotation 90/180 degree
Output torque 1.5~6NM
Open/close time 3-5seconds
Low Working Current 80mA~150mA
Rated current 45-100MA
Control mode 2,3,5 wires(CR01/02/03/04/05/06)
Rated Volotage DC3-6V/AC/DC9-24V
