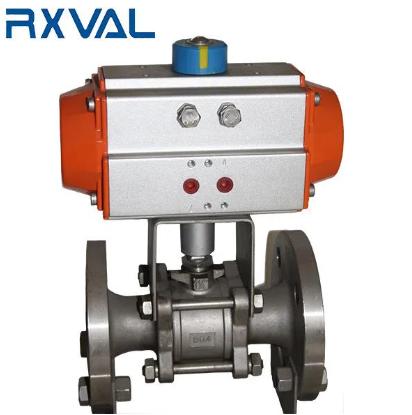

3PC Ball Valve Flange End with Pneumatic actuator

3PC Ball Valve Flange End with Pneumatic actuator
  • Model Number: RXV050
  • Brand Name: RXV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 10T/month
  • Payment: T/T,Paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

RXV050 3PC Ball Valve Flange End with Pneumatic actuator Description

Product Description:

Features

Design and Manufacture: API 6D API608 or BS5351

Face to Face Dimensions: ANSI B16.10

End Flange Dimensions: ANSI B16.5

Test: API6D or API 598
Sizes: 2''-10'' FB/RB
Pressures: ANSI 150lb-2500lb
Materials: Forged Carbon / Stainless Steel
Ends: RF and RTJ flange ends to ANSI B16.5 OR ANSI B16.47 and MSS SP-44 standard.

BW flange ends to ANSI B16.25 standard.

Type of Operation: Lever, Connection dimensions of Worm Gear actuator. Electric actuator, Pneumatic actuator to ISO 5211 standard. Anti-static Electricity constructions ''AS'' and Fire-safe constructions ''FD''.


Materials Cast steel(WCB, CF8, CF8M)
Sizes 2"-10"
