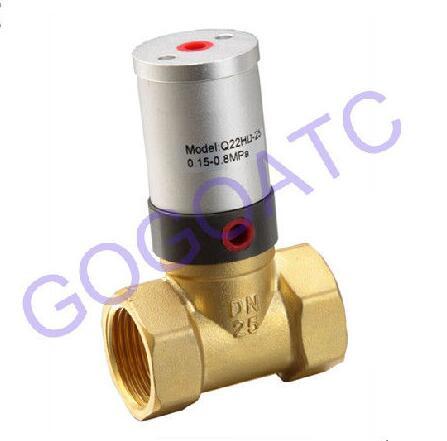

2/2 Way Piston Operated Pneumatic Air Control Valve
- Model Number: Q22HD
- Brand Name: GOGO ATC
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 50 Pieces
- Supply Capacity: 3000 Pieces/month
- Payment: T/T, Western Union, Paypal
- MemberShip: Free Member
- Inquiry Now
Q22HD 2/2 Way Piston Operated Pneumatic Air Control Valve Description
water air oil gas 2/2 way piston pneumatic control valve with brass body Q22HD
pneumatic piston valves fo neutral liquid and gaseus media,
sigle and double acting optional.
Widely used in food area and medicine area, industrial area, washing area and painting area and car-making area.
The valves are divided as Cut-off solenoid valve, Gate-type solenoid valve and Adjustable double position solenoid valve
Q Pneumatic 22 Two-position Two-way HD pneumatic operation 1:single action blank:double action Joint Pipe Bore B:Gate Valve Blank:stop valve
Model Q22HD-15 Q22HD-20 Q22HD-25 Q22HD-35 Q22HD-40 Q22HD-50
Nominal diameter 15 20 25 35 40 50
Port size 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
Working medium Air, water, oil
Working pressure 0.2~0.6Mpa
KV 4 5 10 25 25 40
|Position And Way No||Two-position Two-way|
|Media||Air, Water, Oil|
