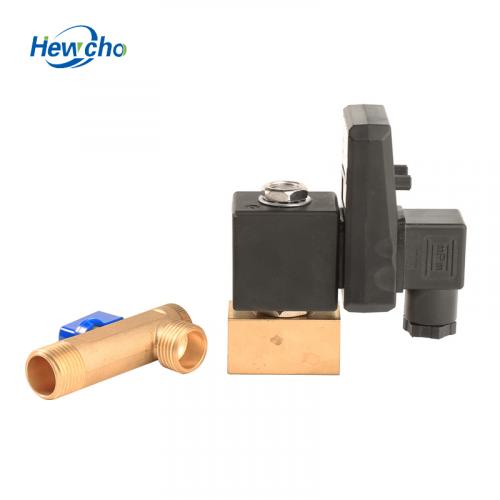

1/2" Automatic Water Drain Solenoid Valve With Timer
- Model Number: WSV001
- Brand Name: Hewcho
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1 Piece
- Supply Capacity: 100000 Pieces/month
- Payment: Visa, T/T, Western Union
- MemberShip: Free Member
- Inquiry Now
WSV001 1/2" Automatic Water Drain Solenoid Valve With Timer Description
WSV001 Automatic Water Drain Solenoid Valve With Timer widely used in air compressor, cooler, separator, dryer, filter, gas tank etcs compressed air system comonents, dischange time and the internal time can be adjuted.
WSV001 Automatic Water Drain Solenoid Valve match analogous circuit solid state electron timer with the solenoid valve to realize discharging the condensed water of compressed pneumatic system at fixed time automatically.
1.High quality, low cost.
2.One kind of model suits all applications, simple installment automotic, exempts maintains.
3.Interval time and discharge time can be adjustable and have test buttons.
4.Pressure 16 Bar, 40 Bar, 80 Bar. Many inds of voltages and connections to be chose.
5.CE certification, IP65 protection rank.
6.5.0mm large diameter. Viton sealing.
7.Ball valve filter, fission with drain valve, assumed L structure.
|Temperature of Media||Normal Temperature|
|Type||220 volt solenoid valve|
|Coil Protection||IP 54|
