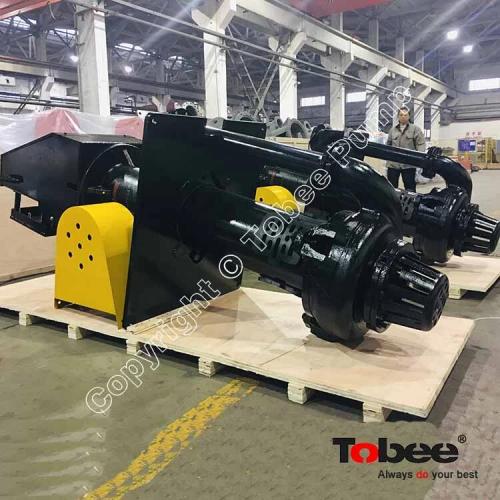

100RV Vertical Cantilever pump

100RV Vertical Cantilever pump
  • Model Number: 100RV
  • Brand Name: TOBEE
  • Place of Origin: Hebei, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 100/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

100RV 100RV Vertical Cantilever pump Description

Contact: Alice  Email:

Metal Model: 40PV-SP, 65QV-SP, 100RV-SP, 150SV-SP, 200SV-SP, 250TV-SP, 300TV-SP

Submerged depth: E 900mm, G 1200mm, J 1500mm, L 1800m, M 2000m, Q 2400mm

Wet End parts:
Pump Impeller: SP40206A05, SP65206A05, SP10206A05, SP15206A05, SP20206A05, SP25206A05, SP30206A05
Pump Casing: SP40092A05, SP65092A05, SP10092A05, SP15092A05, SP20092A05, SP25092A05, SP30092A05
Pump Back Liner: SP40041A05, SP65041A05, SP10041A05, SP15041A05, SP20041A05, SP25041A05, SP30041A05

Rubber Model: 40PV-SPR, 65QV-SPR, 100RV-SPR, 150SV-SPR, 200SV-SPR, 250TV-SPR, 300TV-SPR

Wet End parts:

Pump Impeller: SPR40206, SPR65206,SPR10206, SPR15206, SPR20206, SPR25206, SPR30206
Pump Casing: SPR40092, SPR65092, SPR10092, SPR15092, SPR20092, SPR25092, SPR30092
Pump Back Liner: SPR40041, SPR65041, SPR10041, SPR15041, SPR20041, SPR25041, SPR30041
Impeller O-ring: RV064-S10,  Discharge Pipe Gasket: SP10204, Rubber Back Liner Seal: E4124S01

Material A05
