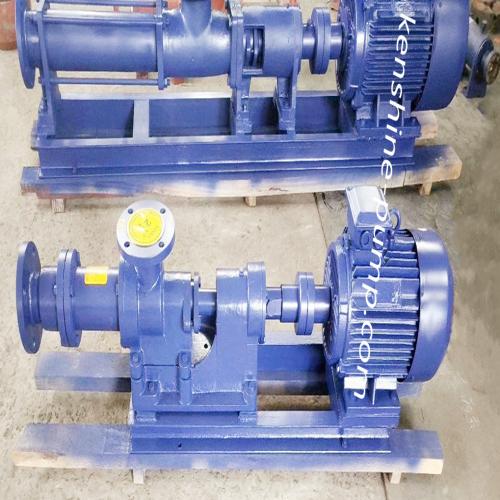

1-1B thick slurry screw pump

1-1B thick slurry screw pump
  • Model Number: 1-1B 2inch
  • Brand Name: kenshine-pump.com
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 800sets per month/month
  • Payment: T/T in advance
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

1-1B 2inch 1-1B thick slurry screw pump Description

1-1B thick slurry screw pump
1-1B thick slurry Screw pump is a single screw conveying pump, its main working parts are eccentric screw (rotor) and the inner surface of the double helix screw bushing (stator).Its working principle is that when electric pump shaft rotates, screw is around the axis of rotation itself on the one hand, on the other hand it rolls along the bushing inside surface. 1-1B thick slurry screw pump is single screw displacement rotary pump. The pump uses eccentric screw in twin twist of the single screw bushing in the rotation, the thick slurry is along the spiral groove by suction to discharge to achieve the function of pump delivery.
Pump features
Self - priming ability, no need to install the bottom valve can directly pump liquid. The pump can be reversed, the flow direction of liquid is changed by the rotation of the pump. It is suitable for the pipeline which needs to reverse flushing occasions. Smooth operation, low vibration and noise. Simple structure, easy to disassemble and repair.
Operating temperature up to 120℃,
flow: 1.1-30m3/h
head: 50-120m
speed 9600r/min.
Pump application
Environmental protection the conveyance of industrial sewage, domestic sewage, sludge containing solid particles and short fibers, especially used in oil-water separators
Plate and frame filter press equipment.
Shipbuilding industry: wheel bottom cleaning, oil water, oil residue, oil sewage and other ring transmission.
Petroleum industry: transport of crude oil, mixture of crude oil and water, mixture of coalfield gas and water, injection of polymers into the formation, etc.
Medicine, daily chemical: all kinds of viscous pulp, emulsion, all kinds of ointment cosmetics
Food and canning industry: all kinds of sticky starch, distiller's grains, grains residue, all kinds of sauces, pulp, solid matter slurry
Construction industry: cement mortar, lime paste, paint, paste coating
Mining industry: solid particles in mines, groundwater, sewage water
Chemical industry: all kinds of suspension, grease, all kinds of colloids, all kinds of adhesives
Printing, paper: high viscosity ink, wallpaper PVC polymer plastic paste and various concentrations of pulp, short fiber pulp
Industrial boilers, power plants: coal water slurry transmission

flow rate 1-40m3/h
head 60-120m
pump material cast iron or stainless steel
